Warren Controls Commercial HVAC / BAC

Pneumatically Activated

Warren 2-way Valve     Warren Valves, 3-way

Pneumatically Activated Warren Commercial HVAC/BAC: 2-Way HVAC, 3-Way HVAC

Spec & Tech Sheets

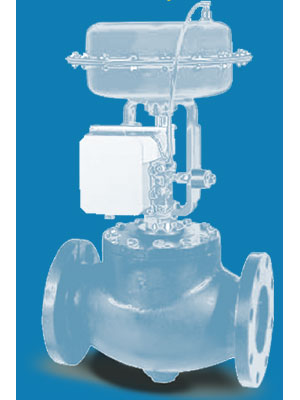

   Warren 2-way valves

2-Way Valves

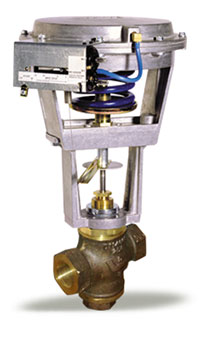

Pneumatic 2-way Warren Valve

Benefits & Features

HVAC - ANSI 125/250, 1/2" - 10"

Two-Way valves available in three types; Single Seated Unbalanced, Single Seated Cylinder Balanced and Double Seated Semi-Balanced. Available with Bronze or Iron bodies and Bronze or Stainless Steel Trim. Flange ratings are either ANSI 125 or 250. Size range is 1/2 inch to 10 inch. The actuators are available is sizes up to 115 Sq in. Two types of positioners are available and their selection depends on the actuator size and level of sophistication required for the application.

STYLES:

  • 2-way single seated unbalanced
  • 2-way single seated cylinder-balanced
  • 2-way double seat semi-balanced
Industry leading range of valve sizes, pressure ratings, high shut-offs and accuracy of regulation. American made with pride for over 50 years.

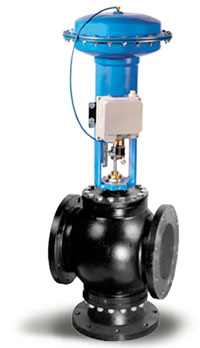

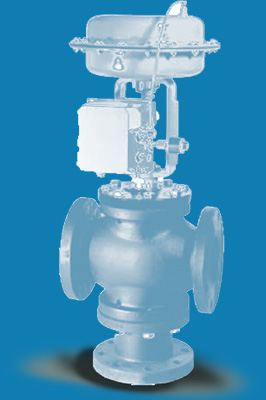

   Warren 3-way Valves

3-WAY

Pneumatically Actuated 3-way valves

Benefits & Features

HVAC - ANSI 125/250, 1/2" - 8"

Three-Way valves available in mixing or diverting designs. The valves are available with Bronze or Cast Iron bodies and Bronze or Stainless Steel Trim. Flange ratings are either ANSI 125 or 250. Size range is 1/2 inch to 8 inch. The actuators are available in sizes up to 115 Sq in. Two types of positioners are available and selection depends on the actuator size and level of sophistication required for the application.

STYLES:

  • 3-WAY MIXING
  • 3-WAY DIVERTING
Industry leading range of valve sizes, pressure ratings, high shut-offs and accuracy of regulation. American made with pride for over 50 years.
 · Go to Top ·

Electrically Activated

Warren 2-way Electrically Activated Valve     Warren Valves, 3-way     Warren AmurAct Actuator

Electrically Activated Warren Commercial HVAC / BAC: 2-Way, 3-Way, and AmurAct

Spec & Tech Sheets

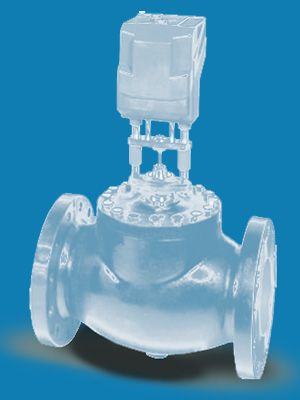

   Warren 2-way valves

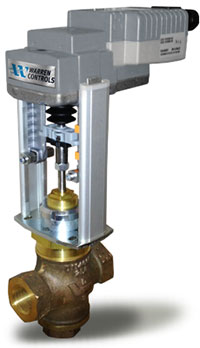

2-Way Electrically Activated

Warren Control Valve 2-way HVAC

Benefits & Features

HVAC - ANSI 125/250, 1/2" - 10"

Two-Way valves available in three types; Single Seated Unbalanced, Single Seated Cylinder Balanced and Double Seated Semi-Balanced. The valves are available with Bronze or Cast Iron bodies and Bronze or Stainless Steel Trim. Flange ratings are either ANSI 125 or 250. Size range is 1/2 inch to 10 inch. The actuators come in two series that accept either mAdc or Vdc input with feed back and 24 or 120 VAC supply. Fail safe can be provided by an internal spring or an auxiliary power pack.

STYLES:

  • 2-way single seated unbalanced
  • 2-way single seated cylinder-balanced
  • 2-way double seat semi-balanced
Industry leading range of valve sizes, pressure ratings, high shut-offs and accuracy of regulation. American made with pride for over 50 years.

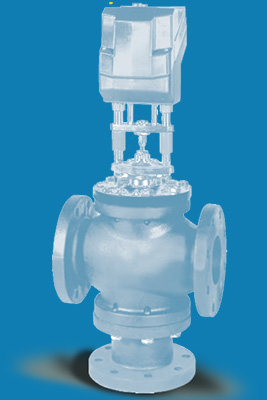

   Warren 3-way valves

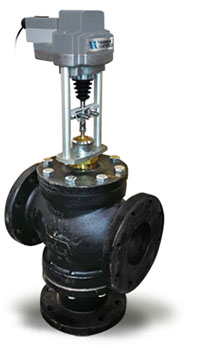

3-Way Electrically Activated

Warren 3-way Electric Valves

Benefits & Features

HVAC - ANSI 125/250, 1/2" - 8"

Three-Way valves available in mixing or diverting designs. The valves are available with Bronze or Iron bodies and Bronze or Stainless Steel Trim. Flange ratings are either ANSI 125 or 250. Size range is 1/2 inch to 8 inch. The actuators come in two series that accept either mAdc or Vdc input with feed back and 24 or 120 VAC supply. Fail safe can be provided by an internal spring or an auxiliary power pack.

STYLES:

  • 3-WAY MIXING
  • 3-WAY DIVERTING
Industry leading range of valve sizes, pressure ratings, high shut-offs and accuracy of regulation. American made with pride for over 50 years.
· Go to Top ·

   Warren AmurAct Actuation

Warren AmurAct Actuator


Warren AmurAct Actuator

NOTE: Warren Controls recommends replacing your AmurAct with ARIA! The ARIA is the new premier electrically actuated control valve for your commercial and industrial, heat-exchanger and water-heater applications.

Model Descriptions

AMA High temperature 3-way flanged steel valve with ANSI 150 or 300 lb. ratings. Available in multiple port sizes for finely tuned flows in sizes 1/2" through 2".
AMB Wide range of compact 2-way and 3-way applications. Available in bronze or CF8M bodies, this NPT end design from five different kinds of hard and soft trim to Cv's ranging from 0.25 up to 40...from 1/2" through 2".
AMC Excels in higher capacity flows with a wide range of 2-way and 3-way applications. This cast iron flanged body is available in sizes from 2 1/2" to 4", depending on profile.
AMD This 2-way steel valve with ANSI 150 or 300 lb. ratings. End connection options are flanged, NPT or socket weld. An optional extension bonnet will accommodate the highest temperature applications possible for electric actuation. Sizes from 1/2" through 2".

Benefits & Features

A New Breed of Actuation

An innovative, specially designed actuator that provides rapid response to load changes, including fail safe and accurate, stable control of water, steam, and common energy transfer fluids in a variety of demanding industrial and commercial applications.

· Go to Top ·

   PICV

Warren 2-way Valve     Warren PICV 125FLG

PICV Warren Commercial HVAC/BAC:
PICV PN16, PICV 125FLG

Spec & Tech Sheets

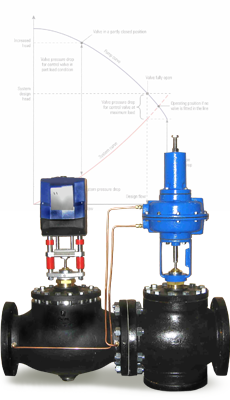

   Warren PICV PN16

PICV PN16

Warren Pressure Independent Control Valve PN16

Benefits & Features

PICV PN16 - High Capacity

There are 2 segments of the PICV, first is an electrically actuated control valve, capable of responding to a control signal from a controller, not part of the PICV. The second senses and regulates a preset adjustable flowing differential pressure across the control valve segment from factory preset to customer's specifications. Both segments include pressure balancing control elements of industrial quality for optimum control performance in the presence of high system pressures and ensuring long life.

Both segments include pressure balancing control elements of industrial quality for optimum control performance in the presence of high system pressures and ensuring long life.

Warren Controls Pressure Independent Control Valve with the authority to maximize stability, efficiency and energy savings.

   Warren PICV 125FLG

PICV 125FLG

Warren Pressure Independent Control Valve PICV 125FLG

Benefits & Features

PICV 125FLG - High Capacity

There are 2 segments of the PICV, first is an electrically actuated control valve, capable of responding to a control signal from a controller, not part of the PICV. The second senses and regulates a preset adjustable flowing differential pressure across the control valve segment from factory preset to customer's specifications.

Both segments include pressure balancing control elements of industrial quality for optimum control performance in the presence of high system pressures and ensuring long life.

Warren Controls Pressure Independent Control Valve with the authority to maximize stability, efficiency and energy savings.

   Monitrol

Warren Monitrol

Monitrol

Spec & Tech Sheets
   Warren PICV PN16

Monitrol

Warren Monitrol Control Valve

Benefits & Features

Monitrol is a turn-key fluid control system including a globe style control valve, a variety of built in sensors for Flow, Pressure and Temperature, a High Precision Electric Actuator, along with controller and an easy to use Touch Screen interface. Monitrol can manage up to three variables (sensors), simultaneously with its control logic. Flexibility allows the control logic in Monitrol to be bypassed if that is desired. A Building Management System can still maintain all control and just make use of the sensor information if that is desired. A full range of I/O signals, feedback and modbus TCP communications are standard.

Both segments include pressure balancing control elements of industrial quality for optimum control performance in the presence of high system pressures and ensuring long life.

MON-DP & MON-RG

  • District Cooling and District Energy
  • Municipal Zone Control
  • Heat Transfer Control Application
  • Control Applications with Flow Monitoring Requirement

MON-RG

  • Heat Transfer Control Application
  • Desuperheating
  • Network Pressure Control
  • Simple Temperature Control
  • Level Control
