Warren Controls Industrial Control Valves

Pneumatically
Activated

Large Globe CV Series 1800  Warren NPT Threaded Series 2800  Warren ANSI 125/250 FLG, Series 2900  Warren Rotary Control Valve Series 3800  Warren Control Valves, Series 5800

Pneumatically Activated Warren Industrial Control Valves: Series 1800, 2800, 2900, 3800, & 5800

Spec & Tech Sheets

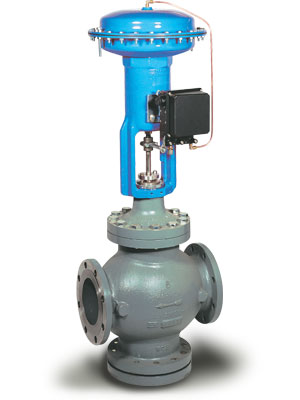

   Warren CV 1800 Series

Warren CV 1800 Series

Pneumatic Control Valve Series 1800

Benefits & Features

Large Globe Control Valves up to ANSI 300 - 12" Size

Series 1800 is commonly used for high pressure differentials, corrosive materials, liquids, gases, and steam. They are for modulating or on/off control in 2-way or 3-way mixing or diverting designs, available in steel & iron with a wide selection of trims, actuators, and accessory instrumentation.

STYLES:

  • 2-WAY BALANCED
  • 2-WAY UNBALANCED
  • 3-WAY MIXING
  • 3-WAY DIVERTING

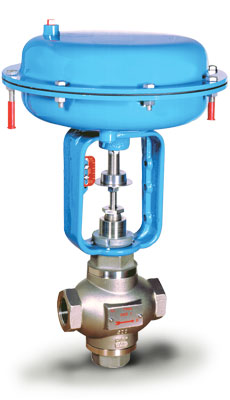

   Warren Control Valve Series 2800

2800 Series

Pneumatic Control Valve Series 2800

Benefits & Features

NPT Threaded 1/2" - 2"

The 2800 features rugged bronze or stainless steel bodies with a variety of trim materials and port sizes. The equal percentage and linear plugs in the 2-way valves and linear plugs in the 3-way valves provide excellent modulating control of a wide variety of fluids for pressure, temperature, level, and flow applications from –20 to 500ºF. The Series 2800 is ideally suited where value and long life are important objectives for applications including but not limited to the Chemical, District Energy, Food & Beverage, General Service, Refining, and Pharmaceutical Industries.

STYLES:

  • 2-WAY UNBALANCED
  • 2-WAY LOW FLOW
  • 3-WAY MIXING
  • 3-WAY DIVERTING
 · Go to Top ·

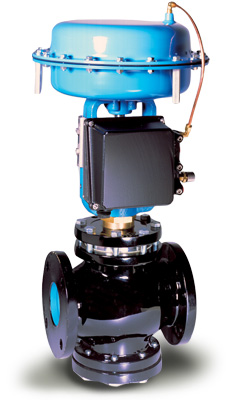

   2900 Series Control Valves

2900 Series

Warren Series 2900 Control Valve

Benefits & Features

ANSI 125/250 FLG, 2 1/2" - 10"

The 2900 features rugged cast iron bodies with a variety of trim materials. The equal percentages plugs in the 2-way valves, and linear plugs in the 3-way valves provide excellent modulating control of a wide variety of fluids

The Series 2900 is ideally suited where value and long life are important objectives for applications including but not limited to: Food & Beverage, Packaged Water Heaters, Pharmaceutical, General Service, and Waste Water having moderate pressure drops and temperatures from -20° to 400°F.

STYLES:

  • 2-WAY BALANCED
  • 2-WAY UNBALANCED
  • 3-WAY MIXING
  • 3-WAY DIVERTING

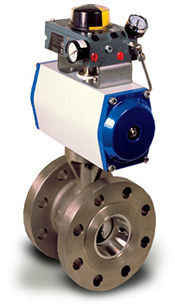

   Series 3800 Warren Control Valves

3800 Series


Warren Control Valve Rotary Series 3800

Benefits & Features

Rotary, up to ANSI 300 FLG, 1" - 8"

Series 3800 incorporates the time-tested and proven Eccentric-Segmented Ball design (E-Ball), combining exceptionally tight control and range-ability (100:1), with superior trim wear characteristics inherent with the eccentric design.

Available as completely automated valve assemblies with the highest quality actuators and accessories available or as bare stem product ready for your automation needs, the 3800 Series comes in a wide variety of standard options for body/trim materials and construction builds, from Class IV to Class VI shut off.

The ever-popular TTZ Ceramic Trim is an off-the-shelf choice for erosive or corrosive fluids and a vast array of custom alloys can be selected for custom construction, engineered to your specific application needs.

STYLES:

  • 2-WAY ROTARY
    • flow to open
    • flow to close
 · Go to Top ·

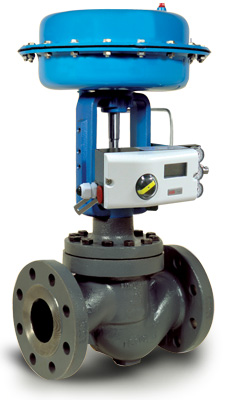

   Warren Control Valve 5800 Series

5800 Series


Warren Series 5800 Industrial Control Valves

Benefits & Features

Thrd-FLG, ANSI 150/300, 1/2" - 4"

Series 5800 features bolted bonnets and cage-retained seats in rugged high efficiency bodies of steel or stainless steel for ease of maintenance and a variety of trim materials and port sizes.

The equal percentage and linear plugs provide excellent modulating control of a wide variety of fluids. The Series 5800 is ideally suited where value and long life are important objectives for applications including but not limited to the Chemical, District Energy, Food & Beverage, General Service, Marine, Pulp & Paper, Refining, and Pharmaceutical Industries with temperatures from -20° to 800°F, severe service, dirty fluids, high pressure drops, and corrosive fluids.

STYLES:

  • 2-way unbalanced cage retained seat
  • 2-way cage balanced cage retained seat

· Go to Top ·

Electrically Activated

Warren AmurAct Actuator   ARIA Valves   Warren 2800E ILEA   Warren 2900E ILEA   Warren Rotary Control Valve Series 3800   Warren 5800E ILEA   Monitrol Warren Control Valve

Electrically Activated Warren Industrial Control Valves: AmurAct, ARIA, Series 3800, ILEA Series 2800E, 2900E & 5800E, and Monitrol

Spec & Tech Sheets

   Warren AmurAct Actuation

Warren AmurAct Actuator


Warren AmurAct Actuator

NOTE: Warren Controls recommends replacing your AmurAct with ARIA! The ARIA is the new premier electrically actuated control valve for your commercial and industrial, heat-exchanger and water-heater applications.

Model Descriptions

AMA High temperature 3-way flanged steel valve with ANSI 150 or 300 lb. ratings. Available in multiple port sizes for finely tuned flows in sizes 1/2" through 2".
AMB Wide range of compact 2-way and 3-way applications. Available in bronze or CF8M bodies, this NPT end design from five different kinds of hard and soft trim to Cv's ranging from 0.25 up to 40...from 1/2" through 2".
AMC Excels in higher capacity flows with a wide range of 2-way and 3-way applications. This cast iron flanged body is available in sizes from 2 1/2" to 4", depending on profile.
AMD This 2-way steel valve with ANSI 150 or 300 lb. ratings. End connection options are flanged, NPT or socket weld. An optional extension bonnet will accommodate the highest temperature applications possible for electric actuation. Sizes from 1/2" through 2".

Benefits & Features

A New Breed of Actuation

An innovative, specially designed actuator that provides rapid response to load changes, including fail safe and accurate, stable control of water, steam, and common energy transfer fluids in a variety of demanding industrial and commercial applications.


   ARIA Actuator

ARIA Actuator


ARIA Actuators

Model Descriptions

ARA 3-Way, Flanged Steel Mix Valves; 1/2" - 2"
ARB 2-Way & 3-Way, NPT Threaded Bronze & SS Valve; 1/2" - 2"
ARC 2-Way & 3-Way, Flanged, Cast Iron Valves; 2-1/2" - 6"
ARD 2-Way, Flanged Steel Cage Valves; 1/2" - 2"

Benefits & Features

Fail-Safe Control Valve for modulating control of instantaneous water heater & Heat Exchanger Applications.

The ARIA Series actuators are designed as either Spring-Fail-Safe upon Loss-of-Power, or as Fail-In-Place on Loss-of-Power, (model dependent.) The actuator is mounted onto the control valve via pillars and mounting base and attached via a yoke locknut. The actuator stem and valve stem are connected as well.

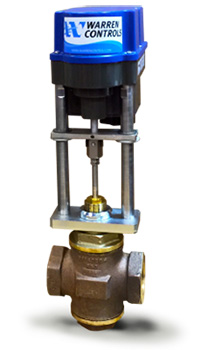

   2800E ILEA

ILEA 2800E Industrial Linear Electric Actuators


Warren 2800E Series ILEA

Benefits & Features

NPT Threaded 1/2" - 2"

The 2800E has a high quality, modulating, Linear, Industrial Electric Valve Actuator and features rugged bronze or stainless steel bodies with a variety of trim materials and port sizes. The equal percentage and linear plugs in the 2-way valves and linear plugs in the 3-way valves provide excellent modulating control of a wide variety of fluids for pressure, temperature, level, and flow applications from -20 to 500° F. The Series 2800 is ideally suited where value and long life are important objectives for applications including but not limited to the Chemical, District Energy, Food & Beverage, General Service, Refining, and Pharmaceutical Industries.

STYLES:

  • 2-WAY UNBALANCED
  • 2-WAY LOW FLOW
  • 3-WAY MIXING
  • 3-WAY DIVERTING

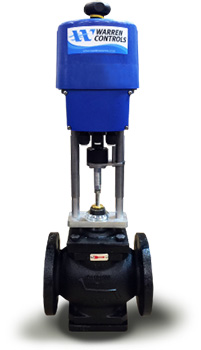

   2900E Series ILEA

ILEA 2900E Industrial Linear Electric Actuators


Warren 2900E ILEA

Benefits & Features

ANSI 125/250 FLG, 2 1/2" - 10"

The 2900E has a high quality, modulating, Linear, Industrial Electric Valve Actuator and features rugged cast iron bodies with a variety of trim materials. The equal percentages plugs in the 2-way valves and linear plugs in the 3-way valves provide excellent modulating control of a wide variety of fluids. The Series 2900 is ideally suited where value and long life are important objectives for applications including but not limited to: Food & Beverage, Packaged Water Heaters, Pharmaceutical, General Service, and Waste Water having moderate pressure drops and temperatures from -20° to 400° F.

STYLES:

  • 2-WAY BALANCED
  • 2-WAY UNBALANCED
  • 3-WAY MIXING
  • 3-WAY DIVERTING

   Series 3800 Warren Control Valves

3800 Series


Warren Control Valve Rotary Series 3800

Benefits & Features

Rotary, up to ANSI 300 FLG, 1" - 8"

Series 3800 incorporates the time-tested and proven Eccentric-Segmented Ball design (E-Ball), combining exceptionally tight control and range-ability (100:1), with superior trim wear characteristics inherent with the eccentric design.

Available as completely automated valve assemblies with the highest quality actuators and accessories available or as bare stem product ready for your automation needs, the 3800 Series comes in a wide variety of standard options for body/trim materials and construction builds, from Class IV to Class VI shut off.

The ever-popular TTZ Ceramic Trim is an off-the-shelf choice for erosive or corrosive fluids and a vast array of custom alloys can be selected for custom construction, engineered to your specific application needs.

STYLES:

  • 2-WAY ROTARY
    • flow to open
    • flow to close

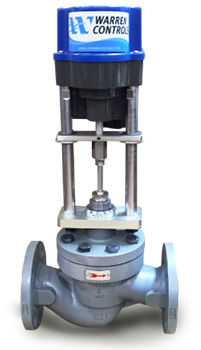

   5800E Series ILEA

ILEA 5800E Industrial Linear Electric Actuators


Warren 5800E Series ILEA

Benefits & Features

Thrd-FLG, ANSI 150/300, 1/2" - 4"

Series 5800E has a high quality, modulating, Linear, Industrial Electric Valve Actuator and features bolted bonnets and cage-retained seats in rugged high efficiency bodies of steel or stainless steel for ease of maintenance and a variety of trim materials and port sizes. The equal percentage and linear plugs provide excellent modulating control of a wide variety of fluids. The Series 5800 is ideally suited where value and long life are important objectives for applications including but not limited to the Chemical, District Energy, Food & Beverage, General Service, Marine, Pulp & Paper, Refining, and Pharmaceutical Industries with temperatures from -20 to 800° F, severe service, dirty fluids, high pressure drops, and corrosive fluids.

STYLES:

  • 2-WAY UNBALANCED CAGE RETAINED SEAT
  • 2-WAY CAGE BALANCED CAGE RETAINED SEAT

   Warren Monitrol

Monitrol


Warren Monitrol Control Valve

Benefits & Features

Monitrol is a turn-key fluid control system including a globe style control valve, a variety of built in sensors for Flow, Pressure and Temperature, a High Precision Electric Actuator, along with controller and an easy to use Touch Screen interface. Monitrol can manage up to three variables (sensors), simultaneously with its control logic. Flexibility allows the control logic in Monitrol to be bypassed if that is desired. A Building Management System can still maintain all control and just make use of the sensor information if that is desired. A full range of I/O signals, feedback and modbus TCP communications are standard.

Both segments include pressure balancing control elements of industrial quality for optimum control performance in the presence of high system pressures and ensuring long life.

MON-DP & MON-RG

  • District Cooling and District Energy
  • Municipal Zone Control
  • Heat Transfer Control Application
  • Control Applications with Flow Monitoring Requirement

MON-RG

  • Heat Transfer Control Application
  • Desuperheating
  • Network Pressure Control
  • Simple Temperature Control
  • Level Control
· Go to Top ·
