Warren Controls

Green Products

Warren AmurAct     Warren Controls ARIA Actuator     Thermiguard and Acoustiguard Blankets     Monitrol Warren Control Valve     PICV PN16 High Capacity Watten Control Valve     125FLG PICV Warren Control Valves

AmurAct Actuators, ARIA Actuators, Thermiguard Blankets, Acoustiguard Blankets, Monitrol, PICV PN16 and PICV 125FLG Control Valves

Spec & Tech Sheets

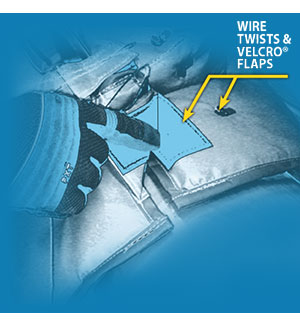

   Warren Thermiguards

Thermiguard Blanket Wraps

Warren Thermiguard Blanket Wrap

Benefits & Features

A simple solution to the growing problem of high fuel cost and excessive heat loss generated by bare valves and flanged fittings.

Will lower the room temperature, improve the work environment and lower the air conditioning load required to cool the mechanical room and building. Most of all, it will save energy!

Will generate a 12 month average payback period and in some cases a payback period as low as 4 months. A 3" 300# Globe Control Valve can generate $400.00 per year in energy savings. Consider the impact on treating 100 fittings, similar in size.

Lower Your Mechanical Room Temperature!

Avoid Getting Burned!

Save Energy!

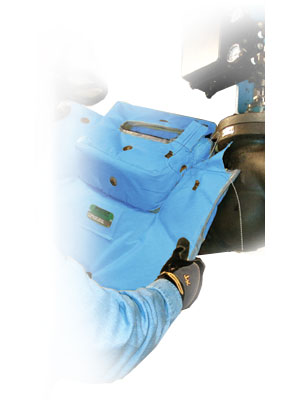

   Warren Acoustiguard Blanket Wraps

Acoustiguard Blanket Wraps

Warren Acoustiguard Blanket Wrap

Benefits & Features

Will reduce harmful radiant noise generated by the pressure flow rate change inside the valve. They improve the surrounding work environment by lowering ambient sound levels, especially in sensitive locations like mechanical rooms and confined spaces.

Will result in a 'conservative' average sound reduction of 6 dBA overall across the frequency spectrum. A much higher dBA reduction can be expected at higher frequencies. See specifications for details.

Includes both a sound absorption high density, needled fiberglass mat filler as well as a high density barium sulfate vinyl reflector.

Reduce Harmful Noise!

Save Energy!

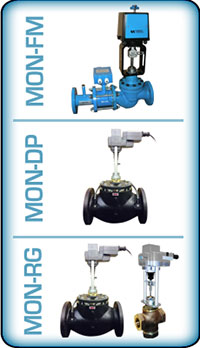

   Warren Monitrol

Monitrol


Warren Monitrol Control Valve

Benefits & Features

Monitrol is a turn-key fluid control system including a globe style control valve, a variety of built in sensors for Flow, Pressure and Temperature, a High Precision Electric Actuator, along with controller and an easy to use Touch Screen interface. Monitrol can manage up to three variables (sensors), simultaneously with its control logic. Flexibility allows the control logic in Monitrol to be bypassed if that is desired. A Building Management System can still maintain all control and just make use of the sensor information if that is desired. A full range of I/O signals, feedback and modbus TCP communications are standard.

Both segments include pressure balancing control elements of industrial quality for optimum control performance in the presence of high system pressures and ensuring long life.

MON-DP & MON-RG

  • District Cooling and District Energy
  • Municipal Zone Control
  • Heat Transfer Control Application
  • Control Applications with Flow Monitoring Requirement

MON-RG

  • Heat Transfer Control Application
  • Desuperheating
  • Network Pressure Control
  • Simple Temperature Control
  • Level Control

   Warren PICV PN16

PICV PN16


Warren Pressure Independent Control Valve

Benefits & Features

There are 2 segments of the PICV, first is an electrically actuated control valve, capable of responding to a control signal from a controller, not part of the PICV. The second senses and regulates a preset adjustable flowing differential pressure across the control valve segment from factory preset to customer's specifications.

Both segments include pressure balancing control elements of industrial quality for optimum control performance in the presence of high system pressures and ensuring long life.

  • CV and DP segments are bolted together, complete with sensing lines
  • Flange dimensions are in accordance with DIN PN16 standard
  • Fail Open, Fail Closed, or Fail in Place

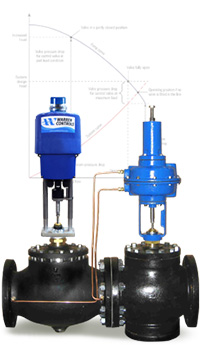

   Warren Control Valve 125FLG

PICV 125FLG


Warren Pressure Independent Control Valve

Benefits & Features

There are 2 segments of the PICV, first is an electrically actuated control valve, capable of responding to a control signal from a controller, not part of the PICV. The second senses and regulates a preset adjustable flowing differential pressure across the control valve segment from factory preset to customer's specifications.

Both segments include pressure balancing control elements of industrial quality for optimum control performance in the presence of high system pressures and ensuring long life.

  • Optional battery backup for "fail safe" operation
  • CV and DP segments are bolted together, complete with sensing lines
  • Flange dimensions are in accordance with DIN PN16 standard
  • Fail Open or Fail Closed

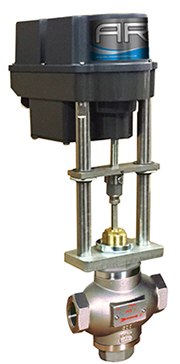

   ARIA Actuator

ARIA Actuators


ARIA Actuators

Model Descriptions

ARA 3-Way, Flanged Steel Mix Valves; 1/2" - 2"
ARB 2-Way & 3-Way, NPT Threaded Bronze & SS Valve; 1/2" - 2"
ARC 2-Way & 3-Way, Flanged, Cast Iron Valves; 2-1/2" - 6"
ARD 2-Way, Flanged Steel Cage Valves; 1/2" - 2"

Benefits & Features

Fail-Safe Control Valve for modulating control of instantaneous water heater & Heat Exchanger Applications.

The ARIA Series actuators are designed as either Spring-Fail-Safe upon Loss-of-Power, or as Fail-In-Place on Loss-of-Power, (model dependent.) The actuator is mounted onto the control valve via pillars and mounting base and attached via a yoke locknut. The actuator stem and valve stem are connected as well.

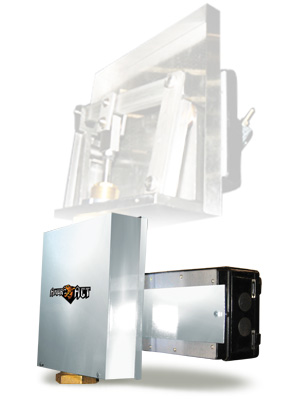

   AmurAct Actuator

AmurAct Actuators


Amuract

NOTE: Warren Controls recommends replacing your AmurAct with ARIA! The ARIA is the new premier electrically actuated control valve for your commercial and industrial, heat-exchanger and water-heater applications.

Model Descriptions

AMA High temperature 3-way flanged steel valve with ANSI 150 or 300 lb. ratings. Available in multiple port sizes for finely tuned flows in sizes 1/2" through 2".
AMB Wide range of compact 2-way and 3-way applications. Available in bronze or CF8M bodies, this NPT end design from five different kinds of hard and soft trim to Cv's ranging from 0.25 up to 40...from 1/2" through 2".
AMC Excels in higher capacity flows with a wide range of 2-way and 3-way applications. This cast iron flanged body is available in sizes from 2 1/2" to 4", depending on profile.
AMD This 2-way steel valve with ANSI 150 or 300 lb. ratings. End connection options are flanged, NPT or socket weld. An optional extension bonnet will accommodate the highest temperature applications possible for electric actuation. Sizes from 1/2" through 2".

Benefits & Features

An innovative, specially designed actuator that provides rapid response to load changes, including fail safe and accurate, stable control of water, steam and common energy transfer fluids in a variety of demanding industrial and commercial applications.
