Models 40R and 40RL, Non-code Steam Service, Sentinel Relief Valves

Spec & Tech Sheets

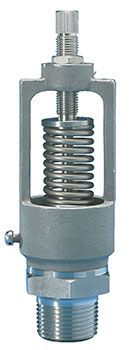

Kunkle Model 40R Warning Relief Valve

Specifications

Applications Sentinel (warning) on steam equipment. Intended as audible warning device, not for pressure relief.
Steam turbines.
Descriptions Model 40R: 1/2" or 3/4" male NPT inlet with top discharge to give visible warning of system overpressure.
Overall height: 5 1/4"
Weight: 1 lb
Model 40RL: Same as 40R with plain lift lever.
Overall height: 6 1/2"
Weight: 1 1/4 lb
Pressure and Temp. Limits 1 to 400 psig
-60° F to 850° F


Benefits & Features

  • All parts are Stainless Steel (SS).
  • Precision lapped beveled seats for optimum performance.
  • Pivot between spring and disc corrects misalignment and compensates for spring side thrust.
  • Each Kunkle valve is tested and inspected for pressure setting and leakage.
