Kunkle Liquid Relief Valve



Models 264, 265, 266, 267, 264P, 265P, 266P, 267P Non-code Relief Valves

Spec & Tech Sheets

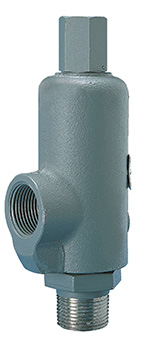

Kunkle Model 264

Model Descriptions

Model 264 Carbon Steel (CS) housing with 316 Stainless Steel (SS) trim (nozzle and disc), SS spring. Pressure-tight cap.
Model 265 Same as model 264 except high-temperature alloy spring (temperatures to 750° F [400° C]).
Model 266 Same as model 264 except all 316 SS materials.
Model 267 Same as model 266 except high-temperature alloy spring (temperatures to 750° F [399° C]).
Model 264P Same as model 264 with pressure-tight packed lift lever.
Model 265P Same as model 265 with pressure-tight packed lift lever.
Model 266P Same as model 266 with pressure-tight packed lift lever.
Model 267P Same as model 267 with pressure-tight packed lift lever.


Benefits & Features

  • Extra heavy rugged construction.
  • Top guided design offers high capacity with 0.110 in2 [0.710 cm2] orifice area.
  • Seats lapped to optical flatness.
  • Ball pivot between disc and spring corrects misalignment and compensates for spring side thrust.
  • Standard outlet with 1" Female NPT.
  • O-ring soft seat available.
  • Maximum back pressure 400 psig (27.6 barg)4.
  • Each Kunkle valve is tested and inspected for pressure setting and leakage.
