Flo-tech Turbine Flow Meters (Hydraulic Fluids)

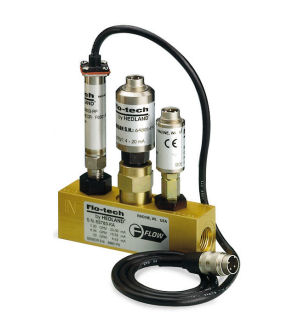

ActivaTM Sensors with Analog Outputs

Spec & Tech Sheets


Flo-tech Activa Sensor w/Analog Outputs

Benefits & Features

  • Flow ranges from 0.4 - 7.0 GPM (1.5 - 26 LPM)
    up to 8 - 160 GPM (30 - 605 LPM)
  • Port sizes from SAE 8 (G 1/4) to SAE 20 (G 1-1/4)
  • Available with flow, pressure, and temperature sensors in one block
  • Flow transducer available with 4-20 mA or 0-5 Vdc output signal
  • Temperature and pressure transducers transmit 4-20 mA output signals
  • Rated to 5800 PSI (400 Bar)
  • 5-point standard calibration, 10 point available
  • Flow straighteners manufactured into meter
  • Accuracy ±1% of reading @ 32 cSt
  • Use with Flo-tech F6700 / F6750 Series Displays

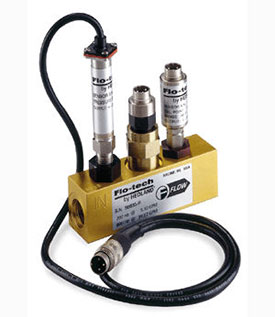

Ultima Sensors w/Frequency Outputs

Spec & Tech Sheets


Flo-tech Ultima Sensor w/Frequency Outputs

Benefits & Features

  • Flow ranges from 0.4 - 7.0 GPM (1.5 - 26 LPM)
    up to 8 - 160 GPM (30 - 605 LPM)
  • Port sizes from SAE 8 (G 1/4) to SAE 20 (G 1-1/4)
  • Available with flow, pressure, and temperature sensors in one block
  • Flow sensor transmits a frequency analog output signal
  • Pressure and temperature sensors transmit 4-20 mA output signal
  • Rated to 5800 PSI (400 BAR)
  • 3-point standard calibration, 5 & 10 point available
  • Flow straighteners manufactured into meter
  • Accuracy ±1% of full scale
  • Use with Flo-tech F6600 / F6650 Series Displays or Hedland HB2800 Series Displays for flow and F6700 / F6750 Series Displays for temperature and pressure

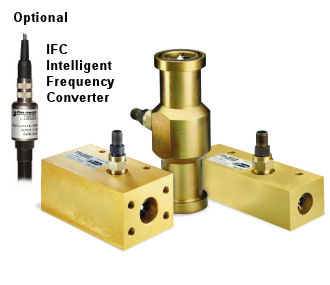

FSB/FSC/FSD Series Classic Sensors

Spec & Tech Sheets


Flo-tech F Series Classic Sensors

Benefits & Features

  • Flow ranges from 0.4 - 7.0 GPM (1.5 - 26 LPM)
    up to 10 - 350 GPM (37 - 1324 LPM)
  • Port sizes:
    - SAE 8 to SAE 16, O-ring boss
    - SAE 20 to SAE 24, Code 61 4-bolt face
    - SAE 20 to SAE 32, Code 62 flange
  • Rated to 6000 PSI (414 BAR)
  • Flow sensor generates analog frequency signal
  • Optional Intelligent Frequency Converter (IFC) for 4-20 mA or 0-5 Vdc output signal
  • Optional pressure and temperature sensors available in some sizes
  • Flow straighteners manufactured into meter
  • Accuracy:
    - Magnetic Pick-up; ±1% of full scale
    - IFC Option; ±1% of reading @ 32 cSt
  • 3-point standard calibration, 5 and 10 point available
  • Sensors with frequency output used with Flo-tech F6600 / F6650 Series Displays or Hedland HB2800 Series Displays
  • Sensors with analog output used with Flo-tech F6700 / F6750 Series Displays

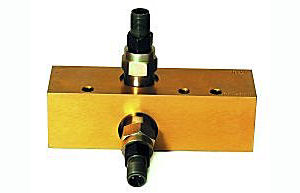

Quad Sensors

Spec & Tech Sheets


Flo-tech Quad Sensor

Benefits & Features

  • Monitors flow in both forward and reverse directions
  • Flow ranges from 1 - 15 GPM (4 - 60 LPM)
    up to 4 - 85 GPM (15 - 321 LPM)
  • Port sizes from SAE 12 to SAE 16
  • Rated to 5000 PSI (345 Bar)
  • Flow sensors generate analog frequency output signal
  • Flow straighteners manufactured into meter
  • Suitable for up/down counters
  • ±1% of full scale accuracy
  • Use with Flo-tech F6600 / F6650 Series Displays
