Flo-tech Portable Hydraulic Testers

Flo-Check® USB Hydraulic System Analyzer

Spec & Tech Sheets


Flo-tech Flo-Check USB Hydraulic System Analyzer

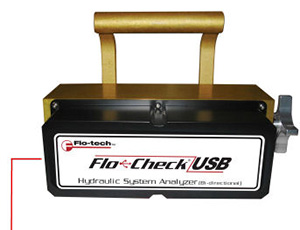

Flo-tech Flo-Check® USB Hydraulic System Analyzer

Benefits & Features

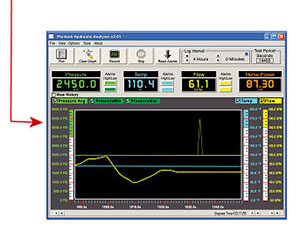

The Flo-Check USB represents the next generation of hydraulic test equipment. The device simultaneously measures flow, pressure, temperature and power within a hydraulic system. This data is displayed and logged through a custom Windows®-based software application; data is received from the Analyzer through a standard USB cable (both software and cable are included with the unit). The Flo-Check USB is ideal for testing, troubleshooting and diagnosis in mobile and industrial hydraulic applications, and for setting hydraulic components such as pumps, valves and motors. The unit is bi-directional and includes a low-resistance load valve and internal pressure relief discs.
  • Flow ranges from 3 - 85 GPM (15 - 321 LPM)
    up to 7 - 200 GPM (26 - 757 LPM)
  • Port sizes in SAE 16 (G 1) and SAE 24 (G 1-1/2)
  • Accuracy: Better than ±1% of reading @ 32 cSt
  • Field selectable US or metric readings
  • High and low set point alarms for flow, pressure, and temperature
  • Captures pressure spikes up to 10,000 PSI (0.2 milliseconds duration)
  • Exports saved data to Microsoft Excel® and other spreadsheet programs
  • USB powered
  • Easy to use, plug and play
  • Calculates hydraulic horsepower
  • Select continuous monitoring or capture data manually
  • Logs up to 12 hours
  • Records alarm history



PFM Series

Spec & Tech Sheets

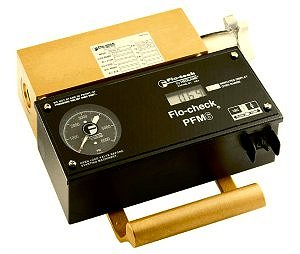

Flo-tech PFM Series

Benefits & Features

  • Flow ranges from 1 - 15 GPM (4 - 56 LPM)
    up to 7 - 200 GPM (26 - 757 LPM)
  • Port sizes in SAE 12 (G 3/4) to SAE 24 (G 1-1/2)
  • Rated to 6000 PSI (414 Bar)
  • Accuracy ±1% of full scale
  • Load valve simulates system pressure
  • Large 3-1/2 digit LCD
  • Flow straighteners manufactured into meter
  • PFM6 measures flow, pressure, and temperature
  • US and metric conversions
  • PFM8 provides measurement of power (HP & kW) directly
  • Carrying handle for improved portability
  • Bi-directional model available



Sensor Array with Load Valve

Spec & Tech Sheets

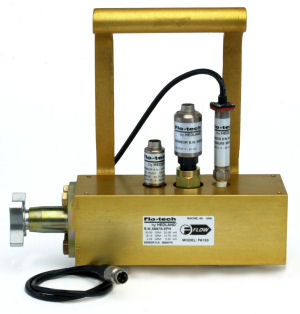

Flo-tech Sensor Array with Load Valve

Benefits & Features

  • Measures flow, pressure, and temperature simultaneously
  • Flow ranges from 1 - 15 GPM (4 - 56 LPM)
    up to 7 - 200 GPM (26 - 757 LPM)
  • Port sizes in SAE 12 (G 3/4) to SAE 24 (G 1-1/2)
  • Rated to 6000 PSI (414 Bar)
  • Accuracy ±1% of reading @ 32 cSt
  • Load valve simulates system pressure
  • Flow sensor available with 4-20 mA, 0-5 Vdc, or frequency output
  • Temperature and pressure sensors transmit 4-20 mA output signals
  • Flow straighteners manufactured into meter
  • Carrying handle for improved portability
