DR5000 Circular Chart Recorder

FDC DR5000 Circular Chart Recorder

Ease of Use & Reliable Design

Traditional Ink Circular Chart Recorder Chart Types:
Partlow & Honeywell 10" charts

The DR5000 may be specified to accept either Partlow or Honeywell recorder charts allowing a form, fit and function replacement for Partlow MRC5000 and Honeywell DR4200 & DR4300 recorder only models (no PID control). The DR5000 accepting legacy charts allows both end users and OEMs flexibility to use the most cost effective circular chart recorder hardware without affecting their current procedures, part numbers and vendors for recorder charts.

Partlow charts run counterclockwise (CCW) while Honeywell charts are Clockwise (CW). The DR5000 ordering matrix allows selection of CCW or CW for chart rotation.

Applications:

  • 21 CFR Part 11 FDA Requirements
  • AMS2750E Heat Treat Applications
  • Ovens - Furnaces - Kilns
  • Environmental Chambers
  • Sterilizers/Autoclaves

Features:

  • 10" Circular Chart Recorder
  • Use Partlow or Honeywell charts
  • Print your own chart version (higher accuracy)
  • Easy Self Documenting Configuration
  • Battery Back-Up (power recorder ~ 48 hours

Enclosure Features:

  • Panel Cutout 12.7" x 12.7", same as Partlow MRC5000 & Honeywell DR4300 10" Circular Chart Recorders
  • Nema 3 standard, Nema 4 optional

DR5000 circular chart recorders are available in one or two pen versions utilizing traditional drag pen as well as with thermal "print your own chart" chart marking. Two pen version inputs share a common ground. Isolated sensors are recommended (T/C's should have ungrounded junctions).

PR Series Paperless Recorders

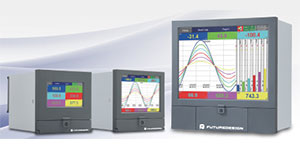

PR Series Paperless Recorders

User Friendly Touch Screen Interface

PR Series High Resolution Touch Display

The PR Series high resolution 4.3", 5.6" and 12.1" touch displays provide multiple display formats, easy touch navigation and support for 19-languages allowing ease of use and setup. In addition, freehand messaging is supported with a stylus of finger directly on the touch screen that may be saved as part of the data log file.

There are multiple standard display views on all models; Digital, Bar Graph, Trend / Digital and combination Digital, Bar Graph and Trend while the 12.1" PR30 also includes a circular chart view. Custom view pages including animation is optional for all models.

PR30 offers Circular Chart view allowing easy replacement for 1 to multiple legacy circular chart recorders while providing secure electronic data files. The circular chart view is configurable for a variety of time formats from 30 minutes to 4-weeks.

Applications:

  • 21 CFR21 Part 11 FDA Requirements
  • AMS2750E Heat Treating Requirements
  • Ovens - Furnaces - Kilns
  • Environmental Chambers
  • Boilers
  • Sterilizers / Autoclaves
  • Power Generation Variables
  • Flow Applications / Totalizers
  • Water / Waste Water Flow
  • Test & Measurement Applications

Features:

  • 4.3", 5.6" & 12.1" Touchscreen
  • Custom Graphic Display Views
  • Process Control PID Module with Profile
  • Scan Rate: 100ms all Analog Inputs (48 max),
    Digital Inputs & External Channels (96 max)
  • Batch Functions (Data Log)
  • Web Server / Email on Alarm
  • Timers & Counters
  • Security / Operator Audit Trail
  • Digital Inputs / High Frequency Pulse
  • Print Directly to Printers; Local, Network & pdf
  • Free Hand Messaging on Touch Screen
  • Circle Chart View (PR30 only)

VR Series Paperless Recorders

FDC VR Series Paperless Recorders

6.4" TFT Display / Up to 18 Channels

FDC VR Series Paperless Recorder

The VR Series Paperless Recorders, upgraded to a larger 6.4" TFT display, is the most advanced and offers the largest display of an 100mm style paperless recorder available. With 8MB on-board RAM for data storage and reliable low cost Compact Flash (CF) cards the VR Series are ideal for monitoring, recording and evaluation processes in a variety of applications.
[1GB CF card standard, 2 GB optional]

The VR Series offers modular design allowing up to 18 analog inputs or a mix of analog & digital I/O utilizing plug & play I/O cards.

Applications:

  • 21 CFR Part 11 FDA Requirements
  • AMS2750E Heat Treat Applications
  • Ovens - Furnaces - Kilns
  • Environmental Chambers
  • Sterilizers/Autoclaves
  • Power Generation Variables
  • Flow Applications / Totalizers
  • Test & Measurement Applications

Features:

  • Low Cost Paperless Recorder
  • 6.4" TFT Display
  • Universal Analog Inputs / 18 Bit A-D
  • Maximum 18 Analog Inputs
  • 18 Derived Channels Standard (Math)
  • Digital Inputs and Outputs available
  • Timers & Counters
  • Security

The standard VR Series includes 6 Timer functions and with the Extended Software now standard, includes 6 counters, an additional 18 derived channels configurable with Math Expressions and/or as Totalizers. With up to 18 analog inputs and 18 Derived channels for Math & other functions the VR 18 has potential for up to 36 channels!

CR06 6 Channel Strip Chart

CR06 6 Channel Strip Chart

100mm Strip Chart Recorder

CR06 100mm 6 Channel Strip Chart Recorder

The CR06 offers brilliant 6-color printing, Universal temperature & process inputs, Large LED display, less than 6" panel depth, Nema 4 and RS232 communication as standard.

Applications:

  • 21 CFR Part 11 FDA Requirements
  • AMS2750E Heat Treat Applications
  • Ovens - Furnaces - Kilns
  • Environmental Chambers
  • Sterilizers/Autoclaves

Features:

  • Low Cost 100mm Strip Chart Recorder
  • 6 Universal analog inputs
  • Large LED Display

Standard 100mm Enclosure:

  • Panel cutout 138mm x 138mm
  • Shallow 150mm / 5.9" depth
  • IP65/Nema 4X
