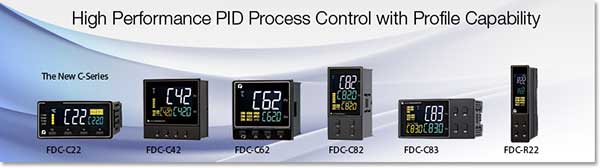

The New C-Series
High Performance Process & Temperature Controllers
Future Design Controls Multi-Color LCD display C-Series set a new standard for DIN temperature controllers packed with performance to meet low cost OEM needs while providing reliable High Performance temperature and process control.
The multi-color LCD display, configurable space for output annunciation, PID % output, count down timer or Profile information provide operators with an ease of use not found in this class of instruments.
Applications:
- Oven - Furnaces - Kilns
- Hot Plates / Melt Pots
- Food Service Equipment
- Environmental Chambers
- Sterilizers / Autoclaves
- Packaging Machines
- Plastics Machinery: Extrusion, Injection, Molding, etc.
Features:
- Multi-Color Display
- Low Cost High Performance PID Control
- 3-year Warranty
- Universal Input T/C-RTD, VDC, mA, mV
- Simple to Use & Configure
- SEL configurable prompt sequence
- Alarms configurable with Time Delay "active"
- PC Configurable
- PID Fuzzy Assisted Auto Tuning
- Setpoint Logic: Static or Ramp Rate
- Profile Ramp Soak for C82/82 & C42
- Up to 4 Control Outputs & Options
- Re-transmission of SP/ PV
- Remote Setpoint
- Serial Modbus RS232/485
- Up to 6 Event and 2 CT Inputs

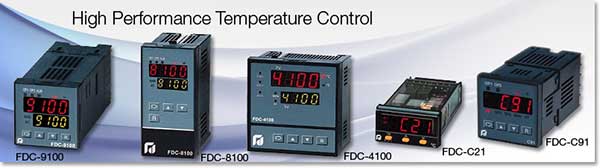

100 and C Series High Performance Single Loop Controls
High Performance Temperature Control
Applications:
- Oven - Furnaces - Kilns
- Hot Plates / Melt Pots
- Food Service Equipment
- Environmental Chambers
- Sterilizers / Autoclaves
- Packaging Machines
- Plastics Machinery: Extrusion, Injection, Molding, etc.
Features:
- Low Cost High Performance PID Control
- PID Fuzzy Assisted Auto Tuning
- Universal Temperature Input / 18 Bit A-D
- Simple to Use & Configure
- SEL configurable prompt sequence
Addt'l Features:
- PC Configurable
- Setpoint Logic: Static or Ramp Rate
- Up to 3 control outputs & optionally:
Retransmission of SP/PV or
Serial Modbus RS232/485
- Serial Communications (option)

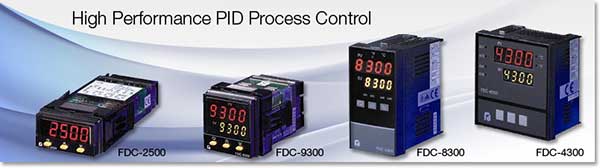

300 Series High Performance Single Loop Controls
High Performance PID Process Control
Applications:
- Oven - Furnaces - Kilns
- Hot Plates / Melt Pots
- Food Service Equipment
- Environmental Chambers
- Sterilizers / Autoclaves
- Packaging Machines
- Plastics Machinery: Extrusion, Injection, Molding, etc.
Features:
- Universal Process Input/18 Bit A-D
- 2nd Analog Input (linear mA/VDC)
- 1 Configurable Event Input
- Simple to Use & Configure
- SEL configurable prompt sequence
- PC Configurable
- Nema 4X (9300 UL Approved Nema 4X)
Addt'l Features:
- PID Fuzzy Assisted Auto Tuning
- 2-sets of PID configurations
- Setpoint Logic: Static or Ramp Rate
- Remote Setpoint Standard
- Up to 4 control outputs & optionally:
Retransmission of SP/PV/PID % out
- Serial Communications (option)
FM Approved High Limit Controls
FM Approved High Limit Controls - L91 1/16 DIN and L41 1/4 DIN. Also Series 7L Surface or DIN Rail Mount.
More L Series Information
90 Series
High Performance 1/16 DIN Temperature Control
FDC-9090 1/16 DIN Single Loop Controls
Future Design's 9090 Series Temperature Control 1/16 DIN set a new standard for DIN temperature controls when introduced in the early 1990's. The 9090 Series provides reliable low cost high performance temperature control.
Unique Parameter Selection provides user flexibility & operator ease of use: Alarm SP, Setpoint Ramp Rate & PV Offset can be configured to be displayed in a variety of sequences when the scroll key is depressed.
Applications:
- Oven - Furnaces - Kilns
- Hot Plates / Melt Pots
- Food Service Equipment
- Environmental Chambers
- Sterilizers / Autoclaves
- Packaging Machines
- Plastics Machinery: Extrusion, Injection, Molding, etc.
Features:
- Low Cost 1/16 DIN PID Control
- 3-year Warranty
- Universal Temperature Inputs
- Simple to Use & Configure
- Setpoint Logic: Static or Ramp Rate
- PID Auto Tuning
B Series Board Level Controls
PID Temperature & Ramp/Soak Single Loop Controls
Distributed Modbus PID Controls
Future Design Controls B Series board level controls, models B41 and B42, are based upon the 1/4 DIN panel mount 4100 and P41 controllers. Typically these products are used as sub-panel mount controllers and accessed by a serial modbus master device; i.e. PLC, HMI display, PC, etc.
B41 PID Steady State PID Board Level Control
The B41 is a steady state board level PID loop control available with an optional Display/Operator Interface Board.
B42 PID Profile Ramp Soak PID Board Level Control
The B42 is a Profile Ramp Soak board level PID loop control. An optional display board is available but intended only for temporary use, typically for configuration and/or troubleshooting.
Applications:
- Oven and Furnaces
- Environmental Chambers
- Kilns: Glass, Wood, Metal, etc.
- Food Processing - Smokehouses
- Sterilizers / Autoclaves
- Hot plates
- Many more applications
B42 Features:
- Universal Process Inputs/18 Bit A-D
- 9 Programs with up to 64 steps/program
- Profile Features; Holdback, Wait For & more
- Event Input configurable for 1 of many functions
- PID Fuzzy Assisted Auto Tune
- 2-Sets of PID Configurations
- Up to 4 Control Outputs
B41 Features:
- Universal Process Inputs/18 Bit A-D
- Setpoint Logic: Static or Ramp Rate
- PID Fuzzy Assisted Auto Tune
- Up to 3-Control Output
P Series - Profile Ramp/Soak Controls
P41 & P91 Ramp/Soak Single Loop Controls
P Series Ramp Soak Profile Single Loop Controls
The FDC-P Series of controllers, the FDC-P41 1/4 DIN and FDC-P91 1/16 DIN, with up to 9 Profiles (up to 64 segments/profile) and up to 5 outputs set new standards for single loop Profile controls. Packed with performance and features meeting simple or complicated OEM applications, the P Series provides an unrivaled value.
Applications:
- Oven and Furnaces
- Environmental Chambers
- Kilns: Glass, Wood, Metal, etc.
- Food Processing - Smokehouses
- Sterilizers / Autoclaves
- Hot plates
- Many more applications
Features:
- Universal Process Input/18 Bit A-D
- 9 Programs with up to 64 steps/program
- Profile Features; Holdback, Wait For & more
- Event Input configurable for 1 of many functions
- SEL configurable prompt sequence
- Simple to Use & Configure
- PC Configurable
- PID Fuzzy Assisted Auto Tuning
- 2-sets of PID configurations
- Up to 4 Control Outputs and optionally
- Retransmission of SP/ PV / PID % out
- Serial Communications (option)
8 Series DIN Rail Mount
Series 8 DIN Rail Mount Temperature Control - 20 amp relay.
Surface or DIN Rail Mount Temperature Controller
Series 8 is a combination surface or DIN rail mount temperature controller that uses the latest in solid state and modular technology.
Setup is accomplished simply by adjusting the set point dial by hand. An integral 20 amp "SPDT" relay eliminates the need for "additional" relays when controlling hi-current loads.
The Series 8 is available with either on/off or time proportioning control outputs. Shown below are specifications - consult factory for special hysteresis, proportional band, cycle times, input power and output types and ratings.
Applications:
- Oven - Furnaces - Kilns
- Food Service Equipment
- Hot Plates / Melt Pots
- Applications requiring a Simple
non-Indicating Temperature Control
with 20A relay
Features:
- Low Cost Temperature Control Solution
- DIN Rail or Surface Mount
- Simple Reliable Analog Design
- On-Off and Time Proportioning Control Output
- Easy to Use and Install
- Dual F / C Temperature Ranges
- Output: 20 Amp (resistive)
Form C Relay (SPDT)

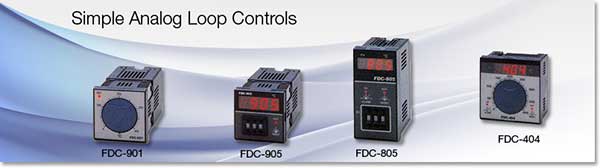

Analog Controls
Analog Panel Mount DIN Temperature Controls
Future Design Controls Analog Series Controllers provide low cost simple to use on/off or proportional control for 1/16 DIN through 1/4 DIN requirements.
Built in "Laser Trim" ASIC technology offers reliable and repeatable control for industrial applications. A wide selection of control outputs and input ranges make the FDC analog series a perfect choice for low cost applications.
Applications:
- Oven - Furnaces - Kilns
- Food Service Equipment
- Food Sercice Equipment
- Plastics & Rubber Machinery
- Replace Legcay Obsolete Analog DIN controls
Features:
- Low Cost Temperature Control Solution
- Simple Reliable Analog Design
- Analog & Digtal Setpoint
- On-Off and Proportional Control Outputs
|
|
