ASME Section Vlll - NB Certified for Air,
Gas and Steam applications.
Sizes from 1/2"
to 3" Pressure to 250# Temperatures to 406º |

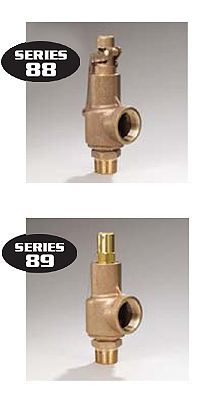

Series
88 and 89 are Multiple Purpose Safety Valves
for steam, air or gas protection. Designed for
durability, yet an economical choice for safety and
relief applications. UV stamped; factory set and
sealed. Choose for a variety of applications.
Usages:
• Over-pressure protection
• Pressure vessels
• Piping systems
• Safety relief
• Compressors and dryers
• Vacuum relief
• Pressure reducing stations
• Intercoolers and aftercoolers
• Pressured piping lines and tanks
Features:
• Adjustable tuned blow-down
• Precision lapped metal-to-metal seating.
• Stainless steel springs
• Ruggedly constructed
• Closed seal hex cap or lever* option
• Wide variety of inlet and outlet options
• Disk-guided seat provides quick, accurate
and excellent re-seating
Options:
• Stainless steel whetted trimming (seat and disk)
• Chrome plating
• Oxygen cleaning
• Female inlet
• BSPT connections
* LIFT LEVER IS
REQUIRED BY THE NATIONAL BOARD FOR STEAM SERVICES.
* 2-1/2" and 3" are not NB Certified.
|
