Needle Valves


Metal Seated, Globe Pattern, Vee-Tip Needle Valves

Brass Globe Valves
Request More Information
Offers good corrosion resistance (equal to 316 stainless steel in many applications). For use in waste water treatment, hydraulic oil lines, instrumentation, sampling lines and similar flow control applications. Recommended for optimal corrosion resistance against acetone, benzol, amylacetate, aniline, hydrocyanic acid, and many other corrosive and noncorrosive fluids.

60-900 Series Brass Globe Valve
Apollo 60-900 series brass globe valve

The 60-900 Series is a RP&C Barstock Globe Valve.
Available from 1/8" through 1/2".
Maximum operating pressure of 5,000 psig at 100° F.
TFE packing is recommended for high pressure air and gas applications.
Grafoil® packing is standard. Maximum temperature for PTFE packing is 425° F.
Malleable iron handle for long lasting reliable service.


Barstock Globe Valve
Request More Information
The Apollo® 60A Series Steel & Stainless Steel Barstock Globe Valves are ideally suited for use in instrumentation, sampling lines and flow control applications.

60A-100 Steel & 60A-700 Stainless Steel Barstock Globe Valve
Apollo 60A series SS barstock globe valves

Backseat stem design reduces pressure exerted on the packing, prolonging packing life. Design also prevents stem from being accidentally turned out of the valve.
Externally adjustable PTFE packing is standard, graphoil available as an option.
Malleable iron handle for long lasting, reliable service.
Max Operating Pressure: 5000 psig @ 100° F., 345 bar @ 38° C.
Temperature Range: -50° F. to 1000° F. (-46° C. to 538° C.)


Barstock Globe Valves
Request More Information
The Apollo® 60B Series Steel & Stainless Steel Barstock Globe Valves are ideally suited for use in instrumentation, sampling lines and flow control applications.

60B-100 Steel & 60B-700 Stainless Steel Barstock Globe Valves

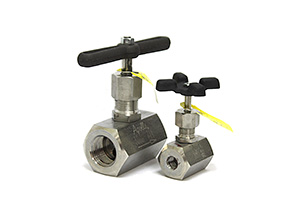

Apollo 60B series SS barstock globe valves

Integral metal-to-metal seat design.
All valves 100% pressure tested.
Fully threaded bonnet to accommodate optional panel mounting nut.
Locking bonnet option available.
All pressure retaining parts constructed of ASTM materials.
Meets the requirements of NACE MR-01-75.
Max Operating Pressure: 10,000 psig @ 100° F., 689 bar @ 38° C.
Temperature Range: -50° F. to 1000° F (-46° C. to 538° C.)
