Partlow Single Loop Electronic Controller

1000 Single Loop Controller

Datasheet / Manual

Partlow MIC 1000 Series Single Loop Controller

Obsolete Product . . .
Contact M&M for options
or current availability.

Specifications

1000 Series 1/4 DIN ANALOG CONTROLLER/LIMIT DEVICE
Product Category: Single Loop Controller or Analog Limit Controller


Benefits & Features

  • Call us for availability:
  • 800-876-0036
  • Phone: 847-356-0566
  • Fax: 847-356-0747
  • E-Mail: sales@mmcontrol.com

1160+ Single Loop Controller (MIC 1160+)

Datasheet / Manual

Partlow MIC 1160+ Single Loop Controller

Specifications

Product Category: Single Loop Controller
Dimensions and size: 48mm x 48mm x 110mm (HxWxD), 1/16 DIN
Primary Input Type: Universal (TC, RTD, DC linear mA/mV)
Other Inputs: Digital, Remote setpoint
Output Type: Relay, SSd, DC linear V or mA, Triac, 24V transmitter power supply
Max. No. of Outputs: 3
Control Type: PID, ON/OFF, Manual, Alarm, Ramp to Setpoint
Power Supply: 100–240V AC 50–60Hz
20-48V AC 50/60 Hz
22-65V DC
Communications: RS-485 serial (West ASCII or MODBUS®)
Panel Sealing: IP66
Certifications: CE, UL, ULC, CSA
Software Tools: Plus Series Configurator

Benefits & Features

  • Dual setpoints with optional remote selection
  • Plug-in output modules allow installing just the functions needed
  • Expanded user-selectable operator modes
  • User-selectable plug-and-play output cards
  • Process and loop alarms
  • Adjustable hysteresis
  • Optional analogue Remote Setpoint Input
  • Optional 10V SSR driver
  • Improved Windows PC configuration software
  • Improved easy to use HMI
  • Jumperless input configuration
  • Auto-hardware recognition
  • Faster communication speeds
  • More security options
  • Backward compatible panel cut out, housing and terminal wiring capability

1166 Single Loop Controller (MIC 1166)

Datasheet / Manual

Partlow MIC 1166 Single Loop Controller

Specifications

Product Category: Single Loop Controller
Dimensions and size: 48mm x 48mm x 110mm (HxWxD), 1/16 DIN
Primary Input Type: Universal (TC, RTD, DC linear mA/mV)
Other Inputs: Digital
Output Type: Relay, SSd, DC linear V or mA, Triac
Max. No. of Outputs: 3
Control Type: PID, ON/OFF, Manual, Alarm, Profiling
Profile Programming: 4 programs, 16 segments each
Power Supply: 100–240V AC 50–60Hz
20-50V AC 50/60Hz
22-65V DC
Communications: RS485 Serial (Modbus® RTU)
Panel Sealing: IP66
Certifications: CE, cULus
Software Tools: N6400 Configurator

Benefits & Features

  • Fast and accurate control via raPID fuzzy logic
  • 4 programs with 16 free-form segments
  • Program ramps in rate or time mode
  • 'Auto Hold' Facility
  • Remote Run Hold
  • Event & Profile active outputs
  • Power Failure Recovery
  • Guaranteed soak to protect production quality
  • Delayed start
  • Modbus comms

· Go to Top ·

1400+ Single Loop Controller (MIC 1400+)

Datasheet / Manual

Partlow MIC 1400+ Single Loop Controller

Specifications

Product Category: Single Loop Controller
Dimensions and size: 96mm x 96mm x 100mm (HxWxD), 1/4 DIN
Primary Input Type: Universal (TC, RTD, DC linear mA/mV)
Other Inputs: Digital, Remote setpoint
Output Type: Relay, SSd, DC linear V or mA, Triac, 24V transmitter power supply
Max. No. of Outputs: 3
Control Type: PID, ON/OFF, Manual, Alarm, Ramp to Setpoint
Power Supply: 100–240V AC 50–60Hz
20-48V AC 50/60 Hz
22-65V DC
Communications: RS-485 serial (West ASCII or MODBUS®)
Panel Sealing: IP66
Certifications: CE, UL, ULC, CSA
Software Tools: Plus Series Configurator

Benefits & Features

  • Dual setpoints with optional remote selection
  • Plug-in output modules allow installing just the functions needed
  • Expanded user-selectable operator modes
  • User-selectable plug-and-play output cards
  • Process and loop alarms
  • Adjustable hysteresis
  • Optional 10V SSR driver
  • Optional analogue Remote Setpoint Input
  • Improved Windows PC configuration software
  • Improved easy to use HMI
  • Jumperless input configuration
  • Auto-hardware recognition
  • Faster communication speeds
  • More security options
  • Backward compatible panel cut out, housing and terminal wiring capability

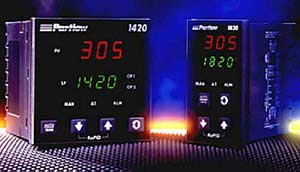

1420 & 1820 Single Loop Controller (MIC 1420 & 1820 RaPIDTM Controllers)

Datasheet / Manual

Obsolete model 1420 & 1820 RaPID Controllers

Obsolete Product . . .
Contact M&M for options
or current availability.

Benefits & Features

  • Call us for more information:
  • 800-876-0036
  • Phone: 847-356-0566
  • Fax: 847-356-0747
  • E-Mail: sales@mmcontrol.com

1460 Single Loop Controller (MIC 1460)

Datasheet / Manual

Partlow MIC 1460 Single Loop Controller

Obsolete Product . . .
Contact M&M for options
or current availability.

Specifications

Product Category: Single Loop Controller
Dimensions and size: 96mm x 96mm x 100mm (HxWxD), 1/4 DIN
Primary Input Type: Universal (TC, RTD, DC linear mA/mV)
Other Inputs: Digital inputs for program select/control
Output Type: Relay, SSd, DC linear V or mA, 1 end of program relay, 4 event relay
Max. No. of Outputs: 8
Control Type: PID, ON/OFF, Manual, Alarm, Profiling
Profile Programming: 4 programs, 16 segments each, Real time clock
Power Supply: 100–240V AC 50–60Hz
20-50V AC 50/60 Hz
22-65V DC
Communications: RS422 & RS485 Serial (Modbus®)
Panel Sealing: IP66
Certifications: CE, UL
Software Tools: N4400 Configurator

Benefits & Features

  • 8 programs with 16 segments with Free-form programming
  • Programming in rate or time mode
  • 'Auto Hold' facility
  • Remote Run/Hold/Abort & Program Selection
  • 4 Event Outputs
  • Real-Time Clock
  • Power Failure Recovery
  • Program End/Run relay as standard
  • Self-tuning algorithms
  • Modbus & ASCII comms
  • PC support software

· Go to Top ·

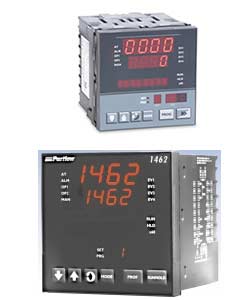

1462 Single Loop Controller (MIC 1462)

Datasheet / Manual

Partlow MIC 1462 Single Loop Controller

Obsolete Product . . .
Contact M&M for options
or current availability.

Specifications

Product Category: Single Loop Controller
Dimensions and size: Front panel: 96mm x 96mm
(3.78" x 3.78") 100mm deep, 1/4 DIN
Input Type: Universal Input for thermocouple, RTD, DC
linear mA/V/mV user-selectable
Output Type: Up to 3 outputs; relay, 4-20mA, SSR driver, Triac
No. of Outputs: 3
Control Type: PID, ON/OFF, profile (ramp/dwell) control
Power Supply: 90 to 264VAC 50/60 Hz
20-50V AC 50/60 Hz
22-65V DC
Communications: Type: RS-485 serial communication port:
Protocol: MODBUS/RTU or West ASCII
Panel Sealing: IP65/NEMA4
Certifications: CE, UL & cUL recognized (E67237)

Benefits & Features

  • Dual, 4-digit, LED displays
  • Enhanced HMI
  • 1/4 DIN panel mount
  • Sensor fault detection
  • Multi-Program Profile Control with Enhanced HMI
  • Control, alarms (process, deviation/band); retransmission output functions
  • Program security

1800+ Single Loop Controller (MIC 1800)

Datasheet / Manual

Partlow MIC 1800+ Single Loop Controller

Specifications

Product Category: Single Loop Controller
Dimensions and size: 96mm x 48mm x 100mm (HxWxD), 1/8 DIN
Primary Input Type: Universal (TC, RTD, DC linear mA/mV)
Other Inputs: Digital, Remote setpoint
Output Type: Relay, SSd, DC linear V or mA, Triac, 24V transmitter power supply
Max. No. of Outputs: 3
Control Type: PID, ON/OFF, Manual, Alarm, Ramp to Setpoint
Power Supply: 100–240V AC 50–60Hz
20-48V AC 50/60 Hz
22-65V DC
Communications: RS-485 serial (West ASCII or MODBUS®)
Panel Sealing: IP66
Certifications: CE, UL, ULC, CSA
Software Tools: Plus Series Configurator

Benefits & Features

  • Dual setpoints with optional remote selection
  • Plug-in output modules allow installing just the functions needed
  • Expanded user-selectable operator modes
  • User-selectable plug-and-play output cards
  • Process and loop alarms
  • Adjustable hysteresis
  • Optional 10V SSR driver
  • Optional analogue Remote Setpoint Input
  • Improved Windows PC configuration software
  • Improved easy to use HMI
  • Jumperless input configuration
  • Auto-hardware recognition
  • Faster communication speeds
  • More security options
  • Backward compatible panel cut out, housing and terminal wiring capability

2000 Single Loop Controller (MIC 2000TM)

Datasheet / Manual

Partlow MIC 2000 Single Loop Controller

Specifications

Product Category: Single Loop Controller
Dimensions: 1/4 DIN front panel, 5.8" deep
Input Type: Universal Input for thermocouple, RTD DC
linear V, DC linear mA/mV user-selectable
Output Type: Up to 3 outputs; relay, SSR driver, 4-20mA
No. of Outputs: 3
Control Type: ON/OFF, position proportioning, PID Control
Electrical: Line Voltage: 115/230VAC +/- 10% 50/60 Hz
Power Consumption: 15VA maximum
Transmitter Power Supply: Provides up to
40mA @ 24 VDC
Communications: Type: RS-485 serial communication port
Protocol: Partlow ASCII
Certifications: UL & cUL recognized (E67237), CSA (LR39885)

Benefits & Features

  • Versatile with High-End Features
  • Single, 4-digit, 0.56" LED display
  • 1/4 DIN panel mount
  • Process or deviation/band alarm functions
  • Full PID capability
  • Separate alarm output
  • Program security

· Go to Top ·

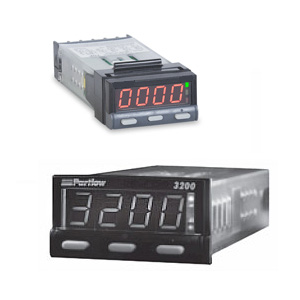

3200 Single Loop Controller (MIC 3200)

Datasheet / Manual

Partlow MIC 3200 Single Loop Controller

Specifications

Product Category: Single Loop Controller
Dimensions and size: 25mm x 49mm x 100mm (HxWxD), 1/32 DIN Cut out
Primary Input Type: Thermocouple (J, T, K, N, B, R, S), PT100 3-wire, DC linear mA/mVdc (volts DC not supported)
Other Inputs: None
Output Type: Relay, SSR Driver (SSd)
Max. No. of Outputs: 3
Control Type: PID, ON/OFF, Alarm
Power Supply: 90 to 264V AC 50/60Hz
12-24V AC 50/60Hz
12-30V DC
Communications: RS485 Serial (Modbus® protocol)
Panel Sealing: IP65
Certifications: CE, cULus

Benefits & Features

  • The Partlow 3200 offers real flexibility as it can be used as a controller or an indicator
  • Simple straight forward operation for easy setup
  • Largest 4 digit red/green digital display in a 1/32 DIN package
  • PID control for (auto-tuning) hands-free operation with manual override tune capability for specialized applications
  • Solid state relay SSR for primary control and alarming
  • Optional second alarm relay (option) or RS-485 communication

6000 Single Loop Controller (MIC 6000)

Datasheet / Manual

Partlow MIC 6000 Single Loop Controller

Specifications

Product Category: Single Loop Profile Controller
Dimensions: 1/4 DIN front panel, 5.8" deep
Input Type: Input options for thermocouple, RTD, DC linear
mA/V/mV
Output Type: Up to 5 outputs via relay, 4-20 mA current or
SSR driver
No. of Outputs: 5
Electrical: Line Voltage: 115/230VAC +/- 10% 50/60 Hz
Power Consumption: 15VA maximum
Transmitter Power Supply: Provides up to
40mA @ 24 VDC
Communications: Type: RS-485 serial communication port
Protocol: Partlow ASCII
Certifications: UL & cUL recognized (E67237), CSA (LR39885)

Benefits & Features

  • Eight Ramp/Soak Profiles
  • Alarm or Event output
  • 1/4 DIN Profile Controller
  • Available inputs for T/C, RTD, Voltage or
    Current
  • Optional remote Run/Hold, Position
    Proportioning or RS-485 Communications
  • Sensor Fault Detection

8200 Single Loop Controller (MIC 8200)

Datasheet / Manual

Partlow MIC 8200 Single Loop Dual Display Controller

Specifications

Product Category: Single Loop - Dual Display
Dimensions: 1/4 DIN front panel, 5.8" deep
Input Type: Universal Input for thermocouple, RTD, DC
linear mA/V/mV user-selectable
Output Type: Single or dual outputs via relay, 4-20 mA
current or SSR driver
(Up to 3 outputs; relay, SSR driver, 4-20mA)
No. of Outputs: 3
Control Type: ON/OFF, position proportioning, PID Control
Electrical: Line Voltage: 115/230VAC +/- 10% 50/60 Hz
Power Consumption: 15VA maximum
Transmitter Power Supply: Provides up to
40mA @ 24 VDC
Communications: Type: RS-485 serial communication port
Protocol: Partlow ASCII
Certifications: UL & cUL recognized (E67237), CSA (LR39885)

Benefits & Features

  • Versatile – Full Featured
  • Dual Display for fast view of process and
    control parameters
  • Full PID capability
  • Separate alarm output
  • Universal input plus remote setpoint and
    sensor fault detection
  • Process or deviation/band alarm functions
  • Program security

· Go to Top ·



Can't find what you are looking for?

Call or E-mail Now . . . for Immediate Service, Pricing, and Delivery

* * * 800-876-0036 * * *

Phone: 847-356-0566   Fax: 847-356-0747      E-Mail: sales@mmcontrol.com

 @





Blog with M&M Control ServiceFind us on FacebookLinked InX is formerly known as Twitter



WARNING: Some of the products we sell can expose you to chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Contact your sales rep or go to www.P65Warnings.ca.gov for more information.

All registered trademarks are fully acknowledged by: M&M Control Service, Inc.

M&M Control Service, Inc. does not represent or claim any affiliation, association, connection or approvals with or from any manufacturer unless stated. We fully acknowledge all trademarks and/or names which are pictured and/or listed throughout the M&M Control Service, Inc. Website.

(PowersTM, also known as, POWERS REGULATOR, MCC POWERS, POWERS-FIAT, POWERS PROCESS CONTROLS, CRANE POWERS and POWERS, a Watts Industries Company. The POWERS trademark is owned by Powers, A Division of Watts Water Technologies, Inc. M&M Control Service, Inc. Is a Stocking Distributor for PowersTM)

(All names unintentionally excluded from this list will be included in the next revision upon our notification.)

*This list may vary, as names not appearing on this list are entitled to the acknowledgment of their Trademarks by M&M Control Service, Inc.

Copyright 2024 M&M Control Service Inc., All Rights Reserved
