Kunkle Drip Pan Elbow Model 299

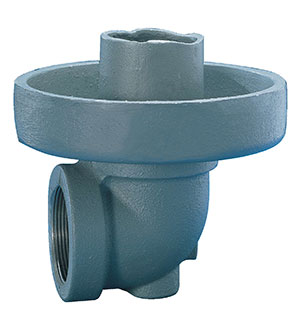

Model 299 Drip Pan Elbow

Spec & Tech Sheets

Specifications
Applications	Recommended installation on outlet/discharge pipe for safety valves. Used on steam service.
Model Descriptions	Model 0299-H: used for safety valve outlet size of 2" (DN 50).
	Model 0299-J: used for safety valve outlet size of 2½" (DN 65)
	Model 0299-K: used for safety valve outlet size of 3" (DN 80).
	Model 0299-M: used for safety valve outlet size of 4" (DN 100).
	Model 0299-P: used for safety valve outlet size of 6" (DN 150).
	Model 0299-Q: used for safety valve outlet size of 8" (DN 200).

Benefits & Features

This illustration shows a discharge elbow and drip pan unit attached to a safety valve with female NPT outlet. For safety valves with flanged outlets – 2" to 4" – use companion flange, short nipple and drip pan elbow, all same size as valve outlet. 6" and 8" elbows have integral 125# ANSI B16.1 Flange.
Important - Length of discharge piping must be kept to a minimum. For design considerations see articles: "Steam Flow Through Safety Valve Vent Pipes" by H.E. Brandmaier and M.E. Knebel (Dec. 1975) and "Analysis of Power Plant Safety and Relief Valve Vent Stacks" by G.S. Liao (Nov. 1974) available through ASME Publications.
Each Kunkle valve is tested and inspected for pressure setting and leakage.
