For nearly forty years, RUSTRAK (commonly misspelled Rustrack) has been the most comprehensive strip chart line in the industry for any application requiring accurate and dependable recording of trend data. Rustrak's three types of recorders: galvanometric, event and servo record data by making an impression on pressure sensitive chart paper. Recording occurs on the galvanometric models when the exclusive patented Rustrak mechanical Striker bar presses the stylus against the chart. This action initiates a dot printing at a rate depending on the chart drive motor chosen. The servo and event recorder styli are in direct contact with the chart paper at all times for quiet and continuous recording. The small compact size makes the Rustrak the ideal choice for both portable applications and for areas where space is limited. Recorders can be packaged in one or two configurations and can be supplied with fixed ranges, dedicated to a particular recording task, or with plug-in signal conditioners on servo recorders for more flexibility. For even greater versatility, add other options. Applications for the world's most versatile recorder are limited only by the imagination.

Rustrak Strip Chart Recorders



NOTICE: Currently the 288 is the only unit still available as new. However, most other models are repairable dependent upon parts and availability.

Rustrak Strip Chart Recorder


Model 288 Single Channel DC and Voltage Input Recorders
  • Accuracy +/- 2 % of span
  • Response time 1 second maximum
  • Maximum Overload 200% short term; 150% continuous
  • Environment: Indoor/outdoor with suitable enclosure
  • Operating temperature 0-60C (32-140F)
  • Utilizes pressure sensitive paper for recording
  • Recording width 2-5/16" nominal
  • Chart Speeds from 1/48"/Hour to 240"/Hour via motor & gear train
  • Numerous options & accessories are available
  • Large selection of input ranges available

 Features

Chart Speeds 1"/Hr standard, 1/48" to 240"/Hr optional. Speed can be changed in field with plug-in gear trains available separately.

Printing System Stylus on pressure sensitive chart paper (Striking paper based on chart speed for continuous line).

Power Supply 120V/60Hz standard; 240/60Hz, 120V/50Hz, 240V/50Hz, 6VDC, 12VDC optional.

Recording Width 288 (single channel): 2-5/16"; 291 (dual channel): (2) 1" Channels.

Chart Paper Feed Internal re-roll or tear-off modes. (User configurable)

Accuracy +/- 2% of span Response Time 1 Second maximum

Overload Maximum Short Term 200%, Maximum Continuous 150% Overload

Operating Environment Indoor (Outdoor with suitable enclosure)

Operating Temperature 0-60C (32-140F)

Storage Temperature -40 to 70C (-40 to 158F) Dimensions 3-5/8"W x 5-5/8"H x 4-5/16D

Approximate Weight 3.75 lbs.

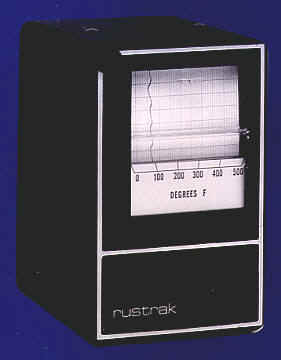

  Z55 Rustrak Series Thermocouple Input Recorder

· Large number of input ranges and T/C types are available.

· No pens to refill or replace

· Uses pressure sensitive paper

· Rugged construction



Features

Chart Speeds 1"/Hr standard, 1/48" to 240"/Hr optional. Speed can be changed in field with plug-in gear trains available separately.

Printing System Stylus on pressure sensitive chart paper (Striking paper based on chart speed for continuous line).

Power Supply 120V/60Hz standard; 240/60Hz, 120V/50Hz, 240V/50Hz optional.

Recording Width 2-5/16"

Chart Paper Feed Internal re-roll or tear-off modes. (User configurable)

Accuracy +/- 2% of span

Response Time 1 Second maximum

Thermocouple Types J, K E, S, T must specify thermocouple and range at time of order

Misc. Cold junction compensation, thermocouple break protection and 1000 ohm maximum thermocouple loop resistance standard

Operating Environment Indoor (Outdoor with suitable enclosure)

Operating Temperature 0-60C (32-140F)

Storage Temperature -40 to 70C (-40 to 158F)

Dimensions 3-5/8"W x 5-5/8"H x 4-5/16D

Approximate Weight 3.75 lbs.
