Partlow Recorders & Data Acquisition

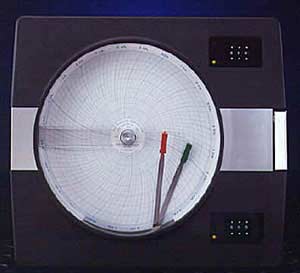

ARC 4100

Datasheet / Manual

Obsolete model ARC 4100 title= A general purpose, analog, one or two pen, 10" circular chart recorder capable of measuring and recording process variables from a variety of inputs types. Recorders are available with optional limit device or controller capability. Available with 12, 24, 48, or 72 hour, or 7 day rotation times and over 60 ranges. Can be panel or surface mounted.

DataVU 5 Paperless Chart Recorder

Datasheet / Manual

Partlow DataVU5 Paperless Chart Recorder

Specifications

Product Category: Recorders and Data Acquisition
Recorder Type: Paperless
Dimensions and size: 144mm x 144mm x 214mm (HxWxD)
Internal Analog Channels: 6
External Analog Channels: 0
Digital Inputs: 4
Relay Outputs: 3
Power Supply: 100–240V AC
20-53 AC/DC
Communications: RS232/485 Modbus (option), Ethernet (option)
HMI: Push button opertation with soft keys
5" TFT colour screen - 144mm x 144mm / 320 x 240 pixel screen
Certifications: UL, cUL
Other Functions: Up to 31 prog x 126 segment programmer (fixed memory of 351 bytes)
dAC (derivative approach control)
Counters/Integrators (6 channels)
Maths (6 channels)
Web Server (option)
Software Tools: Set Up, Data Evaluation, Communication

Benefits & Features

  • Reduces set up time with an intuitive, logical on screen menu.
  • Set up can be carried out on the spot via the front panel
  • Recorder can be configured by personnel of all skill levels using simplified soft key functionality
  • Remote and multiple set up from a PC can be carried out using a RS232/485, Ethernet or CompactFlash card connection, preventing duplication of work and saving time.
  • Supports wide viewing angles with its 5" TFT high quality, color display.
  • Data can be presented in multiple formats including; graphical display, numerical display, historical data display and an event list.
  • Ideal for use in many industrial environments.

DataVU 7 Paperless Chart Recorder

Datasheet / Manual

Partlow DataVU7 Paperless Chart Recorder

Specifications

Product Category: Recorders and Data Acquisition
Recorder Type: Paperless
Dimensions and size: 144mm x 144mm x 200mm (HxWxD)
Internal Analog Channels: 18
External Analog Channels: 24
Digital Inputs: 24
Relay Outputs: 7
Power Supply: 100 - 240V AC +10/-15%, 48 - 63Hz
20 - 30V AC/DC, 48 - 63Hz
Communications: RS232/485 MODBUS, Ethernet, RS 232 Barcode Reader, USB, PROFIBUS DP (option)
HMI: Rotary knob, Touch pad screen (option)
5" TFT colour screen - 144mm x 144mm / 320 x 240 pixel screen
Certifications:
Other Functions: Counters/integrators (27 channels)
Maths (18 channels)
Batch reports (3)
Web Server (option)
Software Tools: Set Up, Data Evaluation, Communication

Benefits & Features

  • Enhanced security through password protections, instrument can only be configured by authorized operating personnel.
  • Fully scalable so additional option cards can be added to the recorder at a later date facilitating future expansion.
  • PC Evaluation software provides option to run reports on data for a specific period (daily, weekly, monthly, annually and custom).
  • Data can be annotated with Individual comments via the recorder relating to process events.
  • Practical control knob designed so a user can configure the recorder on the spot even while wearing protective gloves.
  • Able to withstand humid conditions and meets standards for IP65 ingress protection.
  • Easy to clean, even with aggressive media.
  • DataVU 7 is a robust and durable recorder that is ideally suited to challenging and harsh environments.

MLC 9000+ Multi Loop Controller

Datasheet / Manual

Partlow Model MLC 9000 Plus Multi Loop Controller

Specifications

Product Category Multi-loop Controller
Dimensions and Size Bus Module: 100mm x 30mm x 120mm (HxWxD)
Loop Module: 100mm x 22mm x 120 mm (HxWxD)
Primary Input Type Universal (TC, RTD, DC linear V, DC linear mA/mV)
Other Inputs Heater Break
Output TypeRelay, SSd, DC linear
Max. Number of Outputs 48 max per system
Max. Number of Loops Up to 32 per system
Control Type PID, ON/OFF, Manual, Alarm, Multi-loop, Soft start
Power Supply 18-30V DC
Communications Modbus RTU, Modbus TCP, Ethernet/IP, Profibus, DeviceNet
Panel Sealing IP20
Certifications UL, CE
Software Tools

MLC 9000+ Workshop Software
PROFIBUS Approved GSD File

Benefits & Features

  • Quicker to setpoint and faster reaction to process disturbances
  • On-demand and auto-tuning – no need to manually tune loops
  • Set-up 32 loops in less than 30 minutes
  • Only buy the loops required – no need to buy in multiples of four
  • Free up PLC capacity by 'outsourcing' loop control to the MLC 9000+


Multi Loop Controller Bus Modules

Datasheet / Manual

Basic


Basic Bus Module BCM
Type: Bus Control Module (BCM)
Protocol: None
Ports: Equipped with Partlow configuration port only
PC Configurable: Yes
Construction: BTP, DIN Rail Mount, black ABS plastic
Agency Approvals: CE, UL, cUL
Ideal for: Multi-zone temperature or process control applications in place of either a PLC, multiple discrete controllers of combination PLC / HMI

CANopen


Partlow CANopen
CANopen Bus Module BCM
Type: Bus Control Module (BCM)
Protocol: CANopen
Ports: Equipped with Partlow configuration and CANopen ports
PC Configurable: Yes
Construction: BTP, DIN Rail Mount, black ABS plastic
Agency Approvals: CE, UL, cUL
Ideal for: Multi-zone temperature or process control CANopen network applications in place of either a PLC, multiple discrete controllers of combination PLC / HMI

DeviceNet


Partlow DeviceNet
DeviceNet Bus Module BCM
Type: Bus Control Module (BCM)
Protocol: DeviceNet
Ports: Equipped with Partlow configuration and DeviceNet ports
PC Configurable: Yes
Construction: BTP, DIN Rail Mount, black ABS plastic
Agency Approvals: CE, UL, cUL
Ideal for: Multi-zone temperature or process control DeviceNet network applications in place of either a PLC, multiple discrete controllers of combination PLC / HMI

Ethernet / IP


Partlow EtherNet IP
EtherNet IP Bus Module BCM
Type: Bus Control Module (BCM)
Protocol: Ethernet / IP
Ports: Equipped with Partlow configuration and Ethernet / IP ports
PC Configurable: Yes
Construction: BTP, DIN Rail Mount, black ABS plastic
Agency Approvals: CE, UL, cUL
Ideal for: Multi-zone temperature or process control Ethernet / IP network applications in place of either a PLC, multiple discrete controllers of combination PLC / HMI

MODBUS / TCP


Partlow MODBUS / TCP
MODBUS TCP Bus Module BCM
Type: Bus Control Module (BCM)
Protocol: MODBUS / TCP
Ports: Equipped with Partlow configuration and MODBUS / TCP ports
PC Configurable: Yes
Construction: BTP, DIN Rail Mount, black ABS plastic
Agency Approvals: CE, UL, cUL
Ideal for: Multi-zone temperature or process control MODBUS® / TCP network applications in place of either a PLC, multiple discrete controllers of combination PLC / HMI

MODBUS / RTU


Partlow MODBUS / RTU
MODBUS RTU Bus Module
Type: Bus Control Module (BCM)
Protocol: MODBUS / RTU
Ports: Equipped with Partlow configuration and MODBUS / RTU ports
PC Configurable: Yes
Construction: BTP, DIN Rail Mount, black ABS plastic
Agency Approvals: CE, UL, cUL
Ideal for: Multi-zone temperature or process control MODBUS® / RTU network applications in place of either a PLC, multiple discrete controllers of combination PLC / HMI

PROFIBUS


Partlow PROFIBUS
PROFIBUS Bus Module BCM
Type: Bus Control Module (BCM)
Protocol: PROFIBUS
Ports: Equipped with Partlow configuration and PROFIBUS ports
PC Configurable: Yes
Construction: BTP, DIN Rail Mount, black ABS plastic
Agency Approvals: CE, UL, cUL
Ideal for: Multi-zone temperature or process control PROFIBUS network applications in place of either a PLC, multiple discrete controllers of combination PLC / HMI



MRC 5000

Datasheet / Manual

Partlow MRC 5000 Recorder

Specifications

Product Category: Circular Paper Chart Recorder
Dimensions and size: 10" Chart, 14" x 14" x 3.8" (HxWxD)
Number of Inputs: 1 - 2
Input Type: Universal (thermocouple, RTD, mV/mA/V DC)
Number of Outputs: 1 - 4
Output Type: Relay
Max. Number of Outputs: 4
Control Type: ON/OFF, Alarm
Power Supply: 90-264V AC 50/60Hz
Communications: RS485 Serial (Modbus® RTU)
Panel Sealing: NEMA 3, NEMA 4X optional
Certifications: UL, cUL, CE

Benefits & Features

  • Easy and simple in every aspect of operation: programming, testing and calibration
  • Standard easy read display saves setup time, ensures proper configuration and allows for field calibration
  • Completely assembled slim/trim design—no assembly required—reduces your panel depth and saves you money
  • Wide range of power operation
  • More standard input selections, time rotations and optional features
  • Value priced basic recording

MRC 7000

Datasheet / Manual

Partlow MRC 7000 Recorder

Specifications

Product Category: Circular Paper Chart Recorder
Dimensions and size: 10" Chart, 13.2" x 15.1" x 3.63" (HxWxD)
Number of Inputs: 1 - 2
Input Type: Universal (thermocouple, RTD, mV/mA/V DC)
Number of Outputs: 1 - 8
Output Type: Relay, SSR Driver, 0-20mA or 4-20mA; 0-650ohm max load
Max. Number of Outputs: 8
Control Type: ON/OFF, PID, Manual, Alarm, Profiling
Power Supply: 115V or 230V AC 50/60Hz
Communications: RS485 Serial (Modbus® RTU), ASCII
Panel Sealing: NEMA 3 optional
Certifications: UL, CE, CSA, FM
Profile Programming: 8 profiles, 6 segments (ramp and dwell)

Benefits & Features

  • Micro-based recording with controller or profiler options with programming setpoint profile capability in one instrument
  • Two displays allow you to see critical process values at the same time (on 2 pen units)
  • Easy, straightforward programming allows you to configure your recorder with a logical step-by-step process using a simple keypad
  • Optional true time based profiling capability puts you in control of your process
  • Reliability—maintenance free recording for years to come

MRC 7700

Datasheet / Manual

Partlow MRC 7700 Recorder

Specifications

  • Measurement accuracy: +/- 0.25%
  • Recording accuracy: +/- 0.5%
  • RH calculation accuracy: typically +/- 1%
  • 1 Scan per second
  • 5A SPST or SPDT Relay outputs
  • 13.19" H x 15.13" W x 3.63" D
  • 115 or 230 (optional) VAC powered

Optional Controller Capabilities

  • On-off, time proportioning, or current proportioning
  • Single or dual control output
  • Position proportioning for use with slidewire feedback
  • Relay, SSRD, or mA outputs
  • Remote setpoint input

Benefits & Features

  • Selectable process value display for each pen: wet bulb, dry bulb, or RH.
  • Compensation for barometric pressure changes
  • 4 Digit display per pen
  • Universal Isolated sensor input: thermocouple, RTD, mA, mV, or V
  • Chart speed from 0.1 to 999.9 hours
  • Disposable fiber tipped pens: red, green

· Go to Top ·

MRC 7800

Datasheet / Manual

Partlow MRC 7800 Recorder

Specifications

  • Measurement accuracy: +/- 0.25%
  • Recording accuracy: +/- 0.5%
  • 3 Scans per second
  • 5A SPST or SPDT Relay outputs
  • 13.19" H x 15.13" W x 3.63" D
  • 115 or 230 (optional) VAC powered

Optional Capabilities

  • 2 Programmable alarms per pen
  • Up to 8 relay type outputs
  • Up to four 4-20mA outputs
  • Process value retransmission
  • 24V Transmitter power supply
  • Door lock
  • Water-tight enclosure

Benefits & Features

  • 8 Digit display per pen
  • Isolated linear sensor input: mA, mV, V
  • Square-root extraction
  • Variable exponent for weirs and flumes
  • Custom curves for flow correction, linearization, of height to volume conversion
  • Pressure compensated DP flow calculation
  • Adjustable flow time base - per sec, per min, per hr, and per day
  • Chart speed from 0.1 to 999.9 hours
  • Disposable fiber tipped pens: red, green

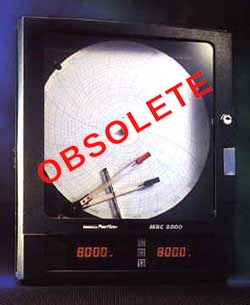

MRC 8000

Datasheet / Manual

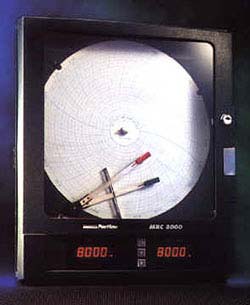

Partlow MRC 8000 Recorder

Specifications

Product Category: Circular Paper Chart Recorder
Dimensions and size: 12" Chart, 16.77" x 14.12" x 7.75" (HxWxD)
Number of Inputs: 1 - 2
Input Type: Universal (thermocouple, RTD, mV/mA/V DC)
Number of Outputs: 1 - 4
Output Type: Relay, SSR Driver, 0-20mA or 4-20mA; 0-650ohm max load
Max. Number of Outputs: 4
Control Type: ON/OFF, PID, Manual, Alarm
Power Supply: 115V or 230V AC 50/60Hz
Communications: RS485 Serial (Modbus® RTU), ASCII
Panel Sealing: NEMA 3, NEMA 4X optional
Certifications: UL, CE, CSA

Benefits & Features

  • 12½ Micro-based recording controller with remote setpoint capability
  • Two large displays—allow you to see critical process values at the same time on 2 pen models
  • Easy, straightforward programming—allows you to configure your recorder with a logical step-by-step process using a simple keypad
  • High resolution of recorder process variables for better record accuracy
  • Reliability—maintenance free recording for years to come

MRC9000 VersaChart

Datasheet / Manual

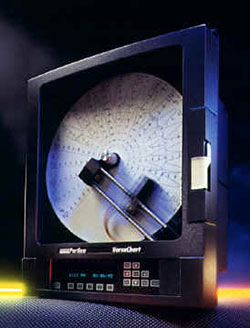

Partlow MRC 9000 VersaChart Recorder

Specifications

Product Category: Circular Paper Chart Recorder
Dimensions and size: 10", 11", 12" Chart, 16.77" x 14.12" x 7.75" (HxWxD)
Number of Inputs: 1 - 8
Input Type: Universal (thermocouple, RTD, mV/mA/V DC, switch)
Number of Outputs: 1 - 8
Output Type: Relay, SSR Driver, 1-4 0-20mA or 4-20mA; 0-650ohm max load
Max. Number of Outputs: 8
Control Type: ON/OFF, PID, Manual, Alarm
Power Supply: 90–264VAC 50/60Hz
Communications: RS 232/ RS 485 Serial (Modbus® RTU)
Panel Sealing: NEMA 3, NEMA 4X optional
Certifications: UL, CE, CSA
Profile Programming: 16 profiles, 8 segments (ramp and dwell)

Benefits & Features

  • Micro-based recorder/controller with profile capability
  • Four pens and four colors
  • Flexible chart sizes - choose from 10–12 diameter
  • Two displays–allowing you to see critical process values at the same time
  • Easy, straightforward PC programming–allows you to configure your recorder with a logical step-by-step process using a simple keypad
  • True time based profiling capability (including Four Process PID Loops, Recovery Action, Guaranteed Soak)—and up to 16 profiles— puts you in control of your process
  • Reliability—maintenance free recording for years to come
  • Excellent features/reasonable price



· Go to Top ·

Can't find what you are looking for?

Call or E-mail Now . . . for Immediate Service, Pricing, and Delivery

* * * 800-876-0036 * * *

Phone: 847-356-0566      Fax: 847-356-0747      E-Mail: sales@mmcontrol.com

 @
