Weksler Instruments

Weksler Pressure and Temperature Instruments

800-876-0036

Phone: 847-356-0566      Fax: 847-356-0747      E-Mail: sales@mmcontrol.com

Request Quote and Place Order
Quote/Order
Back to Weksler Products

Weksler Thermometers & Thermowells:

     Bimetal    |    Glass    |    Gas Actuated    |    Thermowells

Weksler Bimetal Thermometers

Spec & Tech Sheets



Adjustable Angle Type

  Catalog Page 46
Weksler Adjustable Angle Thermometer
Adjustable Angle
Thermometers

Adjustable Angle Type, 3" & 5" Dial Size


Benefits & Features

• All Stainless Steel Construction
• External Recalibration Adjustment
• White dial with black markings
• Accurate to ±1% of Scale Range
• Gasketed Glass Face
• Case is sealed to exclude dirt, dust and moisture
• 3" and 5" dial sizes
• Angularly adjustable frame permits positioning of dial to accommodate viewing requirements





Rigid Forms

  Catalog Page 47/48
Rigid Form Thermometers

Rigid Forms

Rigid Forms
3" & 5" Dial Size


Benefits & Features

• All Stainless Steel Construction
• External Recalibration Adjustment
• White dial with black markings
• Accurate to ±1% of Scale Range
• Gasketed Glass Face
• Case is sealed to exclude dirt, dust and moisture
• 3" dial size and 5" dial size



Heavy Duty Types

  Catalog Page 49
Weksler Heavy Duty Thermometer
Heavy Duty
Thermometers

Heavy Duty Types, 3" Dial Size


Benefits & Features

• Shock and Vibration Resistant
• Stainless Steel Construction
• Plastic Crystal
• Dished Anti-Parallax Dial for Easy Reading
• External Recalibration Adjustment at Rear of Case
• Accurate to 1% of Scale Range (when tested without well)
• Interchangeable with 5" Scale Size "Submarine" Thermometers Having Same Stem Length
• 3/4"-28 UN2A Union Connection Assembly Must be used with Well (or Bushing)

· Go to Top ·



Pocket Bimetal - 1" and 2"

  Catalog Page 50
Weksler Pocket Bimetal Thermometers
Pocket Bimetal
Thermometers

Pocket Bimetal - 1" and 2"


Benefits & Features

1" Dial:
• 5" stem length
• .142" stem diameter
• Complete with pocket case and clip
• Standard with plastic crystal and recalibration feature

2" Dial:
• All Stainless Steel Construction
• Accurate to ±1% of Scale Range
• Dual Scale (Both °F and °C) Ranges



Glass Thermometers

Spec & Tech Sheets



Adjustable Angle

  Catalog Page 55
Adjustable Angle Glass Weksler

Adjustable Angle
Glass Thermometer

Adjustable Angle Glass Thermometer
Mercury Free, Standard, Model A935AF5


Benefits & Features

• Mercury Free.
• Molded Valox® – V-shaped black case for ranges up to and including 300°F
• Die cast black aluminum V-shaped case for ranges above 300°F.
• Glass front excludes dust and dirt.
• White aluminum scale with bold black graduations and figures.
• Mercury Free blue liquid in glass with magnifying lens for easy readability.
• Accuracy is ±1% of full scale.
• Easy adjustment permits case and stem to be rotated 360°.
• 3 1/2", 6", 9" & 12" stems available.
• 1 1/4" - 18" NEF swivel nut.

Options

• Plastic window available for both 7" and 9" scale.
• Aluminum case available for low ranges (300°F and below).

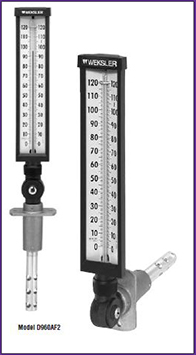

Adjustable Angle Air Duct
Thermometers

  Catalog Page 56
Adjustable Angle Air Duct Weksler Thermometer

Adjustable Angle
Air Duct Thermometer

Adjustable Angle Air Duct Thermometer Model D960AF2


Benefits & Features

• Mercury Free.
• Molded Valox® – V-shaped black case supplied as standard.
• Glass front excludes dust and dirt.
• White aluminum scale with bold black graduations and flanges.
• Mercury Free blue liquid in glass with magnifying lens for easy readability.
• Accuracy is ± 1% of full scale.
• Easy adjustment permits case and stem to be rotated 360°.
• 3 1/2", 6", 9" & 12" stems available.
• Protective slotted bulb guard, 3/4" diameter aluminum stem and 3" diameter union flange

Options

• Plastic window available for both 7" and 9" scale.
• Lagging extension.
• Aluminum case.

· Go to Top ·

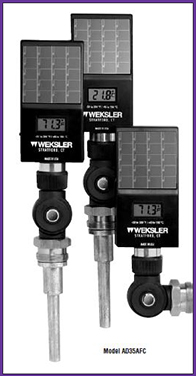

Digital Thermometer

  Catalog Page 57
Digital Weksler Thermometer

Light-Powered
Digital Thermometer

Light-Powered Adjustable Angle Digital Thermometers


Benefits & Features

The WekslerTM light-powered industrial thermometer offers an environmentally friendly alternative to mercury-filled industrial thermometers.

The light-powered industrial thermometer can help reduce inventory requirements with its switchable °F and °C feature, which offers a wide variety of ranges in a single unit (–40/300°F and –40°/150°C).

The high impact ABS case can be adjusted for viewing from any angle.

Stem lengths of 3 1/2" and 6" are available and are interchangeable with standard glass column industrial thermometers. The light-powered industrial thermometer features a 1/2" LCD digital display.



Economy Thermometer

  Catalog Page 59
Economy & Marine Thermometers

Marine & Economy
Thermometer

Marine Thermometer & Economy Thermometer


Benefits & Features

Marine Thermometer

• Molded Valox® – V-shaped gray case.
• White aluminum scale with bold black graduations and flanges.
• 2" and 4" stems available.
• 3 1/4" overall length thermowell (optional) to be used with 2" stem.
  5 1/4" overall length thermowell (optional) to be used with 4" stem.
• Red reading with magnifying lens for easy readability.

Economy Thermometer

• Molded Valox® – V-shaped gray case.
• Red reading spirit filled tube with magnifying lens for easy readability.
• 40/260F and 5/125C is standard range 2°F divisions and 1°C divisions)
• White aluminum scale with bold black graduations and figures.
• 2" stem supplied as standard.
• Supplied standard with removable 1⁄2 NPT brass well, 2" length
  (1.375" insertion).

· Go to Top ·



Gas Actuated Thermometers

Spec & Tech Sheets

Surface (Wall) or Direct Mount Hinged Front for Flush Mounting Surface Mount Surface Mount Hinged Front for Flush Mounting Direct Mount (Flangeless Case)
Gas Actuated Thermometer wall or direct mount Gas Thermometer Hinged front type Gas actuated thermometer wall mount type Gas actuated surface mount thermometer Weksler gas actuated thermometer Gas actuated flangeless case thermometer
Snap-in glass retaining ring.
Standard for
4 1/2" remote.
Molded plastic hinged front ring allows easy access to dial and pointer. Style "A" has bayonet type glass retaining ring. Bayonet type glass retaining ring.
4 1/2" dial size remote mount thermometers.
Front flanged case for semi-flush mounting. Bayonet type glass retaining ring. Bayonet type glass retaining ring.
Standard on all stainless steel adjustable angle.

    Catalog Pages 62-68


Thermowells

Spec & Tech Sheets



Standard Threaded Thermowells

Catalog Pages
Standard Threaded Thermowells for Industrial Bimetal Thermometers

Standard Threaded
Thermowells

For Industrial Bimetal Thermometers
with .250" Diameter Elements


Benefits & Features

• .385" bore available for use with instruments
with .375" diameter elements
• All Weksler standard thermowells are bored
from solid bar stock

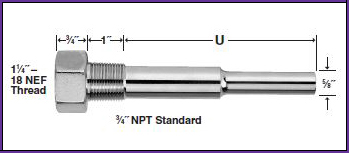

Thermowells for Adjustable Angle Thermometers

Catalog Pages
Thermowell for Adjustable Angle Thermometer
Thermometer
Stem Length
"U"
DIM.
3/4 NPT
Brass
3 1/2" 2 1/2" G1E3D2
6" 5" G1M3D2
9" 8" G1S3D2
12" 11" G1T3D2

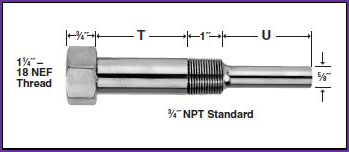

Thermowell for Adjustable Angle Thermometer
Thermometer
Stem Length
"T"
DIM.
"U"
DIM.
3/4 NPT
Brass
3 1/2" 1 1 1/2" G1E3D2B
6" 2 1/2" 2 1/2" G1M3D2E
9" 2 1/2" 5 1/2" G1S3D2E
12" 2 1/2" 8 1/2" G1T3D2E



Thermowells for Gas Actuated Thermometers

Catalog Pages

"K" Series Thermowells
(Fits 3/8" O.D. Bulb with 1/2" NPSM Swivel Nut)


K Series Thermowell
    Part Numbers - 3/4 NPT
A U Brass 304 SS 316 SS
4 2 1/2 S3B4K S3G4K S3J4K
6 4 1/2 S3B6K S3G6K S3J6K

"5F" Series Thermowells
(Fits 5/8" O.D. Bulb with 1-20 NEF-2B Swivel Nut)


5F Series Thermowell
O.A.
Length
  Part Numbers - 3/4 NPT
U DIM. Brass 304 SS 316 SS
4 1/4 2 1/2 D1E5F2 D6E5F2 D4E5F2
6 3/4 5 D1M5F2 D6M5F2 D4M5F2



· Go to Top ·
