Back to Hedland Flo-tech Product Categories

Flo-tech Digital Displays

F6700 / F6750 Series Displays

Spec & Tech Sheets

For Flo-tech's Activa Sensor Arrays and Ultima temperature and pressure sensors

Flo-tech Activa Sensor Arrays F6700 F6750

Benefits & Features

  • Dual inputs, 4-20 mA or 0-10 VDC
  • 5-digit rate display
  • 5-digit totalizer with 4-digit overcarry
  • Built-in transmitter power supply
  • Three plug-in card slots
  • Optional setpoint alarm cards
  • AC and DC powered versions
  • NEMA 4X/IP65 rated
  • CE compliant

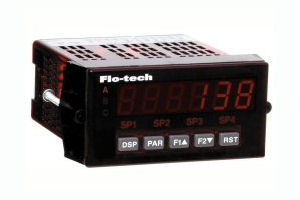

F6600 / F6650 Series Displays

Spec & Tech Sheets

For Flo-tech's Ultima and Classic Turbine Flow Meters

Flo-tech Ultima & Classic F6600 & F6650

Benefits & Features

  • Frequency analog input
  • 6-digit display
  • Count, rate and slave display
  • Built-in transmitter power supply
  • Three plug-in card slots
  • Optional setpoint alarm cards
  • AC and DC powered versions
  • NEMA 4X/IP65 rated
  • CE compliant



Plug-in Output Cards

Spec & Tech Sheets

For F6700/F6750 and F6600/F6650 Digital Displays

Plug-in Output Cards

Benefits & Features

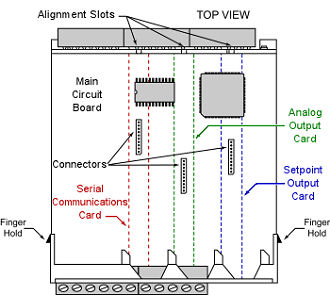

The F6700/F6750 and F6600/F6650 Digital Displays can be customized to meet specific system requirements through the addition of up to three optional plug-in cards. One card for each of the following function types can be installed in each display:
Analog Outputs - A linear DC output signal card can be setup to provide either a 4-20 mA, 0-20 mA or 0-10 VDC signal and can be scaled independent of the input range.
Communications - Optional RS232, RS485, Modbus, Profibus, and DeviceNet plug-in cards are available to facilitate digital communications.
Setpoint Alarms - Select from dual FORM-C (5 AMP), quad FORM-A (3 Amp) or either sinking or sourcing quad open collector logic outputs.
The analog outputs and communication cards can be installed by the factory at time the digital display is ordered, or they may be installed by the customer at a later date. The setpoint alarm cards are available for customer installation and setup only.



HB2800 Series Display

Spec & Tech Sheets

For Flo-tech's Ultima and Classic Turbine Flow Meters

HB2800 Series Display for Flotech

Benefits & Features

  • Microprocessor based
  • Displays rate and/or total
  • 8-digit display
  • Battery and loop powered versions
  • Simple, front panel programming
  • Ten point linearization (advanced model only)
  • Automatic decimal point locating
  • NEMA 4X/IP65
  • CE compliant
