41 Series |
|
Air Cocks (for air use only)
An economical way to shut-off air lines. Standard spring bottom (-01) with 5/32" port are tested at 80 psig. Optional nut bottom (-04) with 1/8" port are suitable for pressures to 200 psig. Various handle configurations available. |
| |
Balancing Valves |
58 Series |
78-600 Series |
Hydronic Balancing Valve, 1/2" & 3/4" Sweat
The Apollo® Model BAV provides dependable hydronic system balance control utilizing corrosion resistant materials and Made in the USA construction. |
Bronze Purge, Balance and Shutoff Valve, 3/4" & 1"
Solder End Flow Port, Hose Connection Drain Port. 600 psig WOG, Cold Non-Shock. |
| |
Bibb Faucets |
35-200 Series |
35-300 Series |
Model Number: HB
The Apollo® HB series compression hose bib has an aluminum handle and proven ASTM Grade bronze body for long term reliability. Features optimum flow capacity and 100% shut-off performance. Features heavy pattern with large flow path.Compression Bibb Faucet, 1/2" - 3/4"
|
Model Number: BD
Ball Valve Bibb Faucet, 1/2" - 3/4"
Heavy pattern with large opening. Ideal for boiler and water heater drains, general liquid dispensing and drainage. |
Model BDQ Drain Valve Quarter-Turn Ball Type
Chrome plated forged brass body and cast aluminum handle for corrosion resistance and long lasting service. The new 45° spout design allows for easier hose connection access. |
| |
Drain Valves |
31-200 Series |
31-400 Series |
Model Number: BD90
Boiler Drain / Sillcock, 1/2" & 3/4"
For deluxe water heaters, low pressure boilers. |
Model Number: BDT
Combination Tee & Boiler Drain, 3/4"
Permits supplying and draining of water through a single tank tapping. |
| |
31-600 Series |
31-700 Series |
Model Number: BD
Boiler Drain, 3/4" MNPT
Apollo's drains are equipped with Conbraco packing seal assuring easy turning stem and leak proof drain. Various shank lengths available.
|
Boiler Drain, 3/4" FNPT
All cast bronze bodies. Drains are furnished with zinc plated steel, chrome finished steel or burnished aluminum wheels. |
| |
31B Series |
42-100 Series |
Model Number: BDL
OEM Style Ball Valve Boiler Drain.
These valves are designed to easily drain water and sediment from boiler and water heater systems in compact installations. They feature a slotted stem with travel stop, standard hose connection and 3/4" male NPT boiler connection. They are available in 1" or 2" shank lengths to suit your application. |
Drain Cock, 1/8" to 1/2"
Rough brass construction; rated for 25 psig. Sizes: 1/8", 1/4", 3/8" and 1/2". Satin Brass Standard -01 Nut, Bottom -04. |
44-100 Series
Hose End Cocks, 1/8" to 1/2"
Interior diameter hose sizes: 3/8" to 7/16". 3/16" port; rated 25 psig. Available in polished brass or satin brass finish. |
| |
Gas Cocks |
50 Series |
51 Series |
Model Number: GCB
Main Control Valve, CSA Listed, 1/2" to 2 1/2"
CSA design certified for 1/2 psig and temperatures from 32° to 125°F. Complies to ANSI Z 21.15.CSA 9.1. |
Gas Service Cocks
Tee or lever handle cocks; CSA design certified. In sizes 1/4" to 3/4". Capacities: 117,000 to 749,000 BTU/hour. |
| |
52 Series |
53 Series |
Model Number: GC2
Gas Service Cock, 1/4" to 1"
Available with tee head, flat head, square head or lever head in sizes from 1/4" to 1". Wrench operated and tested at 125 psig. |
Model Number: GC3
Gas Cock, CSA Listed, 1/8" to 3/8"
Available in male and female sizes: 1/8", 1/4" and 3/8". |
| |
54 Series |
55 Series |
Model Number: GCA
Gas Hose Cock & Appliance Connector Valves, CSA Listed, 3/8" to 3/4". CSA design certified bronze gas valves with 56,500BTU/hour capacity.
|
Model Number: GCR Gas Cock with Throttle Adjustment
Gas Cock With Throttle Adjustment, CSA Listed, 1/4". Designed to meet ANSI Z21.15.CSA 9.1 pressure requirements of 1/2 psig. Thread size: 1/4" male x 1/4" female. |
| |
56 Series |
Model Number: GCP
Gas Pilot Cock, CSA Listed, 1/8"
Wide variety of CSA design certified pilot cocks. Designed to meet ANSI Z21.15.CSA 9.1 pressure requirements of 1/2 psig at temperatures from 32° to 125° F. |
|
|
| |
Gauge Siphon Cocks |
26-100 and 26-300 Series |
26-500 Series |
Compression Gauge Cock
3/8" to 3/4". For draining expansion tanks, other liquid storage vessels. |
Chain Operated Gauge Cock
1/2" to 3/4". For use on water columns beyond reach from the floor. |
| |
26-700 Series |
27-400 Series |
PTFE® Seat Compression Gauge Cock 1/2" to 3/4".
PTFE® seat and stuffing box provide positive seal. Rated up to 250 psig. |
Steam Gauge Siphon, 1/4"
90° and 180° configurations, made from 1/4" heavy gauge seamless brass tubing. |
| |
Liquid Level Gauges, SS |
23-400 Series |

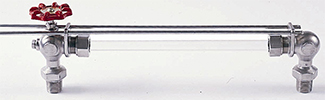

23-600 Series: SS Expansion Tank Gauges |
 |
 |
High Pressure, 1/2" to 3/4", 500 psig Rating, ASME
|
Expansion Tank,1/2" & 3/4", 250 psig Rating |
| |
Plumbing Specialties |
Radiator
Air Valve |
Multi-Orifice
Control Valve |
Backflow Preventor
w/ Feedwater Regulator |
Hydronic
Flow Check |
| 27-202 Series |
1/2" Solder, Bronze
35-403 Series, Model FCT |
35-600-BF Series
Model Number FFB
|
Bronze, 3/4" to 2"
35-FC Series, Model FC
|
 |
 |
 |
 |
| |
Oil Tank Valve |
5-Port
Tank Valve |
Hose Connection
Pressure Gauge, 3/4"
|
|
45-100 Series |
78-124 Series |
Model Number: W-8078-00 |
|
 |
 |
 |
|
|
| |
Steam Cocks |
43 Series: Steam Gauge Cocks |
Satin Brass Steam Cocks, 1/4" |
|
|
| |
Thermal Expansion Devices |
Model EXT, Water Expansion Tank, Non-Potable |
40XT Series, Expansion Tanks, Potable |
 Expansion Tanks, Hydronic, 2 to 13 gallon. Apollo® Model EXT expansion tanks are US made and designed for use in hot water boiler installations for Hydronic heating applications to absorb pressure increases caused by thermal expansion from the heating process. Not for use with potable water systems. |
 Model EXTP Thermal Expansion Tanks, Potable Water, 2-10 gallon.
Apollo® Model EXTP expansion tanks are US made and
designed for use in domestic system installations for
sanitary hot water applications to absorb pressure
increases from the heating process.
|
| |
78LF-RV Series, Model Number EXVLF |
78RV Series, Model Number EXV |
 Combination water heater shut-off and thermal expansion relief valve. Featuring Lead Free dezincification resistant bronze materials. (Lead Free: The wetted surfaces of this product shall contain no more than 0.25% lead by weighted average. Complies with CA AB 1953 and VT S.152. ANSI 3rd party approved and listed.) |
 Apollo® 78RV Series Combination Water Heater Isolation Valve/ IAPMO approved Thermal Expansion Relief Device. This combination water heater shutoff and thermal expansion relief valve is an ideal alternative to expansion tanks in residential plumbing
systems. |
| |
78RV-P Series |
 3/4" Combination Water Heater Isolation Valve/ IAPMO approved Thermal Expansion Relief Device. APOLLOPUSH® connections incorporate proven TECTITETM push-fit technology for quick and easy "push to connect" installation. Ideal alternative to expansion tanks in residential plumbing systems. |
|
| |
Vacuum Relief Valves |
37 Series, Model Number VR |
 Water Heater Vacuum Relief,
1/2" & 3/4"
The Apollo® Model VR Vacuum Relief valve is designed to automatically vent a system should a vacuum occur. It prevents siphoning of water from the system and/or tank collapse.
|
|
|
| |
Water Gauges, Bronze |
20-100 Series, Standard, 3/8" & 1/2", 300 psig |
20-200 Series, Heavy Duty, 3/8" to 3/4", 400 psig |
 Rated: 125 psig @ 350°F, 300 psig @ 100°F. Use for all types of liquid level verification; available with 3/8" or 1/2" NPT male pipe connections. Aluminum or plastic composition hand wheels; EPDM gauge glass gaskets standard. Other glass gaskets available. Automatic ball checks help prevent the loss of fluids should the glass be broken. |
 Rated: 200 psig @ 400°F, 400 psig @ 100°F.
All standard 20 Series features but with a heavier valve body pattern for higher service ratings. |
| |
20-300 Series, Square, 1/2" & 3/4", 400 psig |
20-400 Series, Side Mount, 1/2", 300 psig |
 Rated: 200 psig @ 400°F, 400 psig @ 100°F Available with 1/2" (ASTM B-16 brass bar stock) or 3/4" (B-584 cast bronze) NPT male pipe connections. Four guard rods and EPDM gauge glass gaskets standard. Other glass gaskets available. Automatic ball checks help prevent the loss of fluids should the glass be broken.
|
 Rated: 125 psig @ 350°F, 300 psig @ 100°F
Side-mounted handwheels allow water gauge operation in hard-to-reach places; with all the 20 Series design features. |
| |
20-601/602 Series Chain Lever, 1/2" & 3/4", 500 psig |
20-604/605 Expansion Tank, 1/2" & 3/4", 500 psig |
 Rated 250 psig @ 400°F, 500 psig @100°F
Lever on standard 12-foot chain allows operator to open and close valves that would be beyond reach. Valve stems operate on quarter-turns.
|
 Rated: 200 psig @ 400°F , 400 psig @ 100°F. Bottom arm shut-off valve prevents water leaks during gauge glass changes.
|
| |
20-700 Series Expansion Tank, 3/8" & 1/2", 300 psig |
20-800 Expansion Tank with Shut-off, 1/2", 400 psig |
 20-700: Simple Expansion Tank Gauges
Available with 3/8" or 1/2" MNPT connections; EPDM gauge glass gaskets and 1/4" needle drain valve in lower arm are both standard.
|
 Bronze Expansion Tank Gauges
Rated: 200 psig @ 400°F , 400 psig @ 100°F.
Bottom arm shut-off valve prevents water leaks during gauge glass changes. |
| |
|
21 Series Extended Shank, 3/8" & 1/2", 300 psig |
24-300 Series High Pressure, 1/2" to 3/4", 500 psig |
 Rough Bronze Water Gauges w/Extended Shank
21-100 rated 125 psig @ 350°F, 300 psig @ 100°F., 21-200 rated: 200 psig @ 400°F, 400 psig @ 100°F. Available with 3/8" or 1/2" MNPT connections; EPDM gauge glass gaskets and 1/4" needle drain valve in lower arm are both standard.
|
 ASME, Rated 500 psig @ 100°F, 250 psig @ 400°F. Bronze Liquid Level Gauges.
Automatic and non-automatic direct reading gauges in shank pipe sizes 1/2" and 3/4".
|
| |
24-600 Series Chain Lever, 1/2" & 3/4", 500 psig |
25-200 Series H-Duty Polished, 3/8" to 3/4", 400 psig |
 Rated 250 psig @ 400°F, 500 psig @ 100°F. Lever on standard 12-foot chain allows operator to open and close valves that would be beyond reach. Valve stems operate on quarter-turns.
|
 ASME, Rated: 200 psig @ 400°F , 400 psig @ 100°F. Heavy Pattern Bronze Water Gauges.
All standard 20 Series features but with a heavier valve body pattern for higher service ratings.
|
| |
25-400 Series Square Polished, 1/2" & 3/4", 400 psig |
25-500 Series Square Polished, 1/2" & 3/4", 400 psig |
 Rated: 129 psig @ 350°F, 300 psig @ 100°F.
Square Pattern Bronze Water Gauges.
Available with 1/2" (ASTM B-16 brass bar stock) or 3/4" (B-584 cast bronze) NPT male pipe connections. Four guard rods and EPDM gauge glass gaskets standard. Other glass gaskets available. Automatic ball checks help prevent the loss of fluids should the glass be broken. |
 Rated: 200psig @ 400°F, 400 psig @ 100°F.
Square Pattern Bronze Water Gauges.
Available with 1/2" (ASTM B-16 brass bar stock) or 3/4" (B-584 cast bronze) NPT male pipe connections. Four guard rods and EPDM gauge glass gaskets standard. Other glass gaskets available. Automatic ball checks help prevent the loss of fluids should the glass be broken. |
| |
25-600 Chain Lever Polished, 1/2" & 3/4", 500 psig |
|
 Rated 250 psig @ 400°F, 500 psig @ 100°F.
Chain Lever Water Gauges.
Lever on standard 12-foot chain allows operator to open and close valves that would be beyond reach. Valve stems operate on quarter-turns.
|
|
|
|
