Water Temperature Controls - Institutional


Back to Armstrong Products

Industrial    |   Institutional

Armstrong is a global provider of innovative water temperature control solutions for Institutional hygiene and Industrial process applications. For Healthcare, Hospitality, Educational and Correctional Institutional buildings, Armstrong provides Digital (The Brain®) and Thermostatic solutions that place user safety and Legionella risk reduction at the forefront of hot water system design, operation and maintenance.

For Food, Pharmaceutical and Chemical processing Industrial plants, Armstrong provides EmechTM Digital Steam/Water Mixers for instantaneous hot water generation and EmechTM Digital Control Valves for mixed water temperature control that enhance system performance and reliability.

Institutional Water Temperature Controls. . . Armstrong offers both a complete system and a modular component solution to mixed water temperature control across the entire Institutional Hot Water Distribution network.

    The Brain® Digital Recirculation Valve

The Brain®
The Brain® and BS - Connectivity Module
The Brain® with Recirculation Manifold
The Brain® w/Recirculation Manifold & BS Connectivity Module
The Brain® Digital Mixing Centers
The Brain® Digital Mixing Centers and BS - Connectivity Module
Connectivity

    SenseTM Digital Point of Use

SenseTM Model DMV1
SenseTM Model DMV2
SenseTM Model DMV3
SenseTM Model DMV23

    Thermostatic Mixing Valves

Single Fixture
Group of Fixtures



The Brain® Digital Recirculation Valves. . . The Brain® Digital Recirculating Valve (DRV) and Digital Mixing Centers (DMC) are specifically designed for use in a pumped recirculating hot water system.

The Brain®



Shown: Model DRV40

Armstrong The Brain model DRV40The Brain®
Models DRV40, DRV50, DRV80:

Digital Recirculation Valves (DRV) are designed specifically to be the primary water temperature controller in a continuously pumped circulating hot water system.

Digital technology provides enhanced water temperature control accuracy which resists zero system demand "Temperature Creep" without the use of a manual throttling valve or a temperature activated pump shut-off device (aquastat).

Operational Specifications

  • ± 2°F water temperature control at points of use 25' downstream during demand
  • ± 2°F water temperature control at the DRV during zero system demand "idling" periods
  • 2°F minimum valve inlet to outlet temperature requirement (system recirculation temperature loss)
  • Automatic shutoff of hot water flow upon cold water inlet supply failure
  • Automatic shutoff of hot water flow in the event of a power failure
  • Programmable set point range of 81-158°F (27-70°C)
  • Programmable thermal disinfection mode
  • Programmable 1st level hi/lo temp alarm display
  • Programmable temperature error level for safety shutdown



Options

Model DRV40:
Model DRV40 is a Digital Re-Circulating Valve (DRV) designed for systems which experience diverse draw-off between 0 - 41 GPM* and is provided with 1.5" NPT connections.

Model DRV50:
Model DRV50 is a Digital Re-Circulating Valve (DRV) designed for systems which experience diverse draw-off between 0 - 73 GPM*. DRV50 is a model DRV80 provided with bushed down 2" NPT connections.

Model DRV80:
Model DRV80 is a Digital Re-Circulating Valve (DRV) designed for systems which experience diverse draw-off between 0 - 165 GPM* and is provided with 3" NPT connections.



Model DRV50 Model DRV80
DRV50 DRV80



* Note: Flow capacities indicated at 7.5 ft/sec pipeline velocity.



Request More Information       · Go to Top ·

The Brain® and BS - Connectivity Module



Digital Recirculation Valve (DRV) with BrainScan® (BS) Connectivity Module


Armstrong DRV with BrainScan Model DRV40BS

DRV40BS, DRV50BS, DRV80BS

Digital Recirculation Valve (DRV), with BrainScan® - Hot water monitoring control module, designed specifically to be the primary water temperature controller in a continuously pumped circulating hot water system.

Model DRV40BS

Armstrong DRV with BrainScan Model DRV50BS Armstrong DRV with BrainScan Model DRV80BS
Model DRV50BS Model DRV80BS



Request More Information       · Go to Top ·

The Brain® with Recirculation Manifold

Digital Recirculation Valve (DRV) with Recirculation Manifold


Armstrong DRV with recirculation manifold model DRV40R

DRV40R, DRV50R, DRV80R

Digital Recirculation Valve (DRV) designed specifically to be the primary water temperature controller in a continuously pumped circulating hot water system. DRV40R, DRV50R, and DRV80R are supplied with a recirculation return manifold as shown.

Model DRV40R

Armstrong DRV with recirculation manifold model DRV50R Armstrong DRV with recirculation manifold model DRV80R
Model DRV50R Model DRV80R



Request More Information       · Go to Top ·

The Brain® with Re-circulation Manifold & BS Connectivity Module

Digital Recirculation Valve (DRV) with Recirculation Manifold & BrainScan® (BS) Connectivity Module

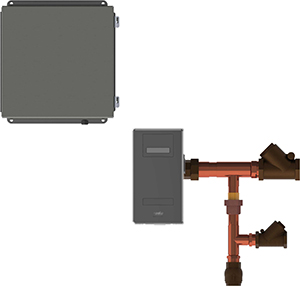

Armstrong DRV with recirculation manifold and BrainScan module model DRV40RBS

DRV40RBS, DRV50RBS, DRV80RBS

Digital Recirculation Valve (DRV), with BrainScan® - Hot water monitoring control module, designed specifically to be the primary water temperature controller in a continuously pumped circulating hot water system. DRV40RBS, DRV50RBS, and DRV80RBS are supplied with a recirculation return manifold as shown.

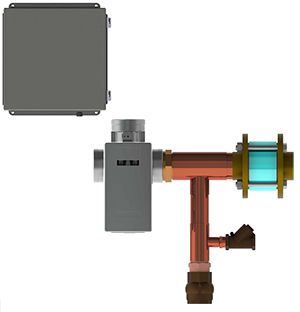

The Brain Model DRV40RBS Armstrong DRV with recirculation manifold and BrainScan module model DRV80RBS

Armstrong DRV with recirculation manifold and BrainScan module model DRV50RBS
The Brain Model DRV50RBS The Brain Model DRV80RBS



Request More Information       · Go to Top ·

The Brain® Digital Mixing Center

Digital Mixing Centers (DMC)



DMC40, DMC40-40, DMC50, DMC80, DMC80-80, DMC80-80-80

Fully Digital Mixing Centers (DMC) designed specifically to be the primary water temperature controller in a continuously pumped circulating hot water system.


Armstrong The Brain digital mixing center model DMC40 Armstrong The Brain digital mixing center model DMC40-40
The Brain® Model DMC40 The Brain® Model DMC40-40
Model DMC40 is a pre-piped Digital Mixing Center supplied with all requisite installation components. DMC40 is designed for systems which experience diverse draw-off between 0 - 41 GPM* and is provided with 1.5" union connections. Model DMC40-40 is a pre-piped Digital Mixing Center supplied with all requisite installation components. DMC40-40 includes two DRV40 and is designed for systems which experience diverse draw-off between 0 - 115 GPM* or require DRV redundancy. DRV40-40 is provided with 2.5" union connections.

Armstrong The Brain digital mixing center model DMC50 Armstrong The Brain digital mixing center model DMC80
The Brain® Model DMC50 The Brain® Model DMC80
Model DMC50 is a pre-piped Digital Mixing Center supplied with all requisite installation components. DMC50 is designed for systems which experience diverse draw-off between 0 - 73GPM* and is provided with 2" flanged connections. Model DMC80 is a pre-piped Digital Mixing Center supplied with all requisite installation components. DMC80 is designed for systems which experience diverse draw-off between 0 - 165GPM* and is provided with 3" flanged connections.

Armstrong The Brain digital mixing center model DMC80-80 Armstrong The Brain digital mixing center model DMC80-80-80
The Brain® Model DMC80-80 The Brain® Model DMC80-80-80
Model DMC80-80 is a pre-piped Digital Mixing Center including two DRV80 supplied with all requisite installation components. DMC80-80 is designed for systems which experience diverse draw-off between 0 - 294 GPM* and is provided with 4" flanged connections. Model DMC80-80-80 is a pre-piped Digital Mixing Center including three DRV80 supplied with all requisite installation components. DMC80-80-80 is designed for systems which experience diverse draw-off between 0 - 459 GPM* or require DRV redundancy and is provided with 5" flanged connections.



Request More Information       · Go to Top ·

The Brain® Digital Mixing Centers and BS - Connectivity Module

Digital Mixing Center (DMC) with BrainScan® (BS) Connectivity Module



DMC40BS, DMC40-40BS, DMC50BS, DMC80BS, DMC80-80BS, DMC80-80-80BS

Fully Digital Mixing Centers (DMC), with BrainScan® - Hot water monitoring control module - (BS - Connectivity Module), designed specifically to be the primary water temperature controller in a continuously pumped circulating hot water system.


Armstrong The Brain digital mixing center model DMC40BS Armstrong The Brain digital mixing center model DMC40-40BS
The Brain® Model DMC40BS The Brain® Model DMC40-40BS
Same as Model DMC40, with BrainScan® (BS) Connectivity Module - hot water monitoring control. Same as Model DMC40-40, with BrainScan® (BS) Connectivity Module - hot water monitoring control.

Armstrong The Brain digital mixing center model DMC50BS Armstrong The Brain digital mixing center model DMC80BS
The Brain® Model DMC50BS The Brain® Model DMC80BS
Same as Model DMC50, with BrainScan® (BS) Connectivity Module - hot water monitoring control. Same as Model DMC80, with BrainScan® (BS) Connectivity Module - hot water monitoring control.

Armstrong The Brain digital mixing center model DMC80-80BS Armstrong The Brain digital mixing center model DMC80-80-80BS
The Brain® Model DMC80-80BS The Brain® Model DMC80-80-80BS
Same as Model DMC80-80, with BrainScan® (BS) Connectivity Module - hot water monitoring control. Same as Model DMC80-80-80, with BrainScan® (BS) Connectivity Module - hot water monitoring control.



Request More Information       · Go to Top ·

Connectivity

BrainScan® (BS) Connectivity Module


BrainScan Connectivity

RS485 Port

The integral RS485 Serial Port provides an ability to remotely program the DRV and update the firmware via BS - Connectivity Module or Modbus.

The integral RS485 Serial Port can receive the following outputs from the DRV and communicate them via BS - Connectivity Module or Modbus.

  • Set Point
  • Inlet/Outlet Temperature
  • Over Temperature Alert

The integral RS485 Serial Port can receive the following selfdiagnostic error messages from the DRV and communicate them via BS - Connectivity Module or Modbus.

  • Over Temperature Error
  • PCB Error
  • Thermister Error
  • Motor Error/Emergency Mode
  • Battery Error
BrainScan® Connectivity


Water Temperature Control - Connectivity

The integral RS485 Serial Port on The Brain® Digital Recirculating Valve (DRV) can be used to connect the DRV directly to a Building Automation System (BAS) using Modbus RTU or to an optionally selected BS - Connectivity Module which enables interface with a BAS operating on Modbus, BACnetTM or LonWorksTM protocols.

Modbus RTU

When configured for Modbus the DRV becomes a Remote Terminal Unit (RTU). The BAS will need to be using a Modbus RTU format. When connected directly to a BAS using Modbus, the DRV can be assigned a unique network address which is programmed via the integral DB9 external port.



Request More Information       · Go to Top ·



SenseTM Single Point of Use | Digital. . . SenseTM is a series of 4 individual point of use digital mixing valves designed for installation at the point of use to allow user control of water temperature and flow. The range has been designed to offer individual lavatory, individual shower, individual bath fill and individual bath/shower combination digital flow and temperature control primarily in healthcare installations where user safety and Legionella risk reduction is paramount.



Model DMV1

Armstrong digital electronic mixing valve model DMV1SenseTM Electronic Mixing Valve - DMV1
For Lavatories

Concealed electronic mixing valve with surface mount control panel for lavatory flow and ±2°F (±1°C) temperature control.

Model DMV2

Armstrong digital electronic mixing valve model DMV2SenseTM Electronic Mixing Valve - DMV2
For Individual Showers

Concealed electronic mixing valve with surface mount control panel for individual shower flow and ±2°F (±1°C) temperature control.

Model DMV3

Armstrong digital electronic mixing valve model DMV3SenseTM Electronic Mixing Valve - DMV3
For Individual Baths

Concealed electronic mixing valve with surface mount control panel for individual bath fill and ±2°F (±1°C) temperature control.



Operational Specifications

  • Programmable timed flow
  • No touch on/off flow control
  • No touch temperature adjustment
  • Programmable minimum/maximum temperature access limits
  • Programmable service flush
  • Programmable thermal disinfection mode
  • Data logging capabilities







Model DMV23

Armstrong bath and shower electronic mixing valve model DMV23SenseTM Electronic Mixing Valve - DMV23
For Bath and Shower

Concealed electronic mixing valve with surface mount control panel for bath and shower flow and ±2°F (±1°C) temperature control.



Request More Information       · Go to Top ·

Single Point of Use | Thermostatic | Single Fixture | Group of Fixtures

Single Fixture



Model 215

Armstrong Rada Model 215Single Fixture Rada Thermostatic Mixing Valve - Model 215:

Thermostatic Mixing Valve of "sealed for life" replaceable cartridge construction. Compact design is ideally suited for use at or near the final point of use to deliver a pre designated mixed water temperature to either a single or a small "group" of lavatories.

Complete operating mechanism is enclosed in a durable disposable polymer cartridge for ease of maintenance. Powerful internal movement of the hot and cold water proportioning mechanism resists mineral deposition.

Capable of close temperature control at diverse flow rates between .5 and 11 gpm (1.9 and 41.6 lpm). Unit is supplied as standard with a tamper proof single temperature "locking" shroud and variable temperature control trim set.*



Operational Specifications

  • Typical outlet temperature control ±2°F
  • Adjustable maximum temperature limit stop
  • Adjustable single temperature lockout
  • Thermal shutdown mode upon inlet supply failure













* Use of the trim set allows for full temperature control to within 5°F (2°C) of either inlet supply along with an integral maximum temperature limit stop and single temperature locking option.



Group of Fixtures



Model 320, Model 320D, 320 - FMC/SMC, Model 425, Model 425D, Model 425 - FMC/SMS

Features two Thermostatic Mixing Valves and derivative assemblies designed specifically for use in non-return "dead leg" applications. The range has been designed to offer accurate temperature control in installations where there are diverse flow requirements.

Operational Specifications

  • Dual thermostatic elements provide redundancy in the event of individual thermostat failure
  • Typical outlet temperature control ±2°F
  • Adjustable maximum temperature limit stop
  • Adjustable single temperature lockout
  • Thermal shutdown mode upon inlet supply failure

Armstrong thermostatic mixing valve model 320 Armstrong thermostatic mixing valve model 320D
Model 320 Model 320D
Thermostatic Mixing Valve of "sealed for life" disposable cartridge construction. Compact design with top and/or bottom blended water outlet makes Model 320 ideal for recessed enclosure, plumbing chase and utility/mechanical room installation. A derivative assembly of the standard Model 320 Thermostatic Mixing Valve of "sealed for life" disposable cartridge construction. Compact design with top and/or bottom blended water outlet makes Model 320D ideal for recessed enclosure, plumbing chase and utility/mechanical room installation.

Armstrong Rada model 320 FMC SMC Armstrong mixing valve model 425
Rada Model 320 - FMC/SMC Model 425
Thermostatic Mixing Valve for remote/secure cabinet mount "dead leg" group fixture control. Model 320 is ideal for this application due to its low service, single "sealed for life" disposable cartridge construction, low inlet to outlet temperature differential requirement and low flow single fixture control capability. Model 425 Thermostatic Mixing Valve for institutional group fixture water temperature control. Ideal for recessed enclosure, plumbing chase and utility/mechanical room installation. Powerful internal mechanism and stainless steel operating mechanism resist mineral deposition.

Armstrong mixing valve model 425D Armstrong Rada group fixture model 425 - FMC/SMC
Model 425D Rada Model 425 - FMC/SMC
A derivative of the standard Model 425 Thermostatic Mixing Valve for institutional group fixture control. Capable of close temperature control at diverse flow rates between 2 gpm (7.5 lpm) and 49 gpm (185 lpm). Able to blend to within 5°F (2°C) of either inlet supply due to "low seepage" across internal proportioning mechanism. Thermostatic Mixing Valve (TMV) for remote/secure cabinet mount "dead leg" group fixture control. Model 425 is ideal for this application due to its low service, low inlet to outlet temperature differential requirement and low flow single fixture control capability.


Request More Information       · Go to Top ·
